CATTANEO 2000 Ton Link Drive Press 4500 x 2500 mm - with cushion

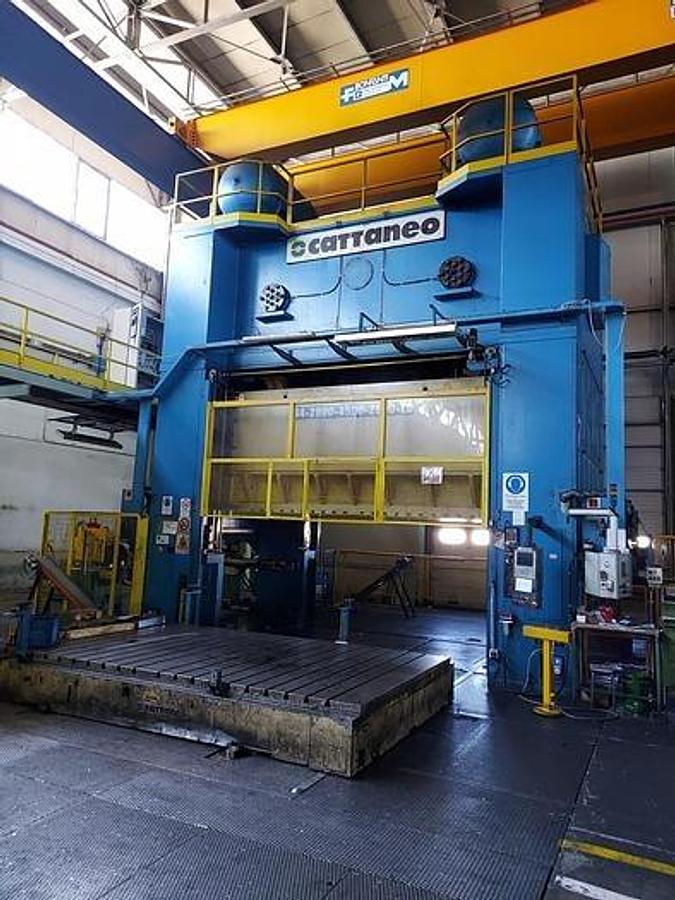

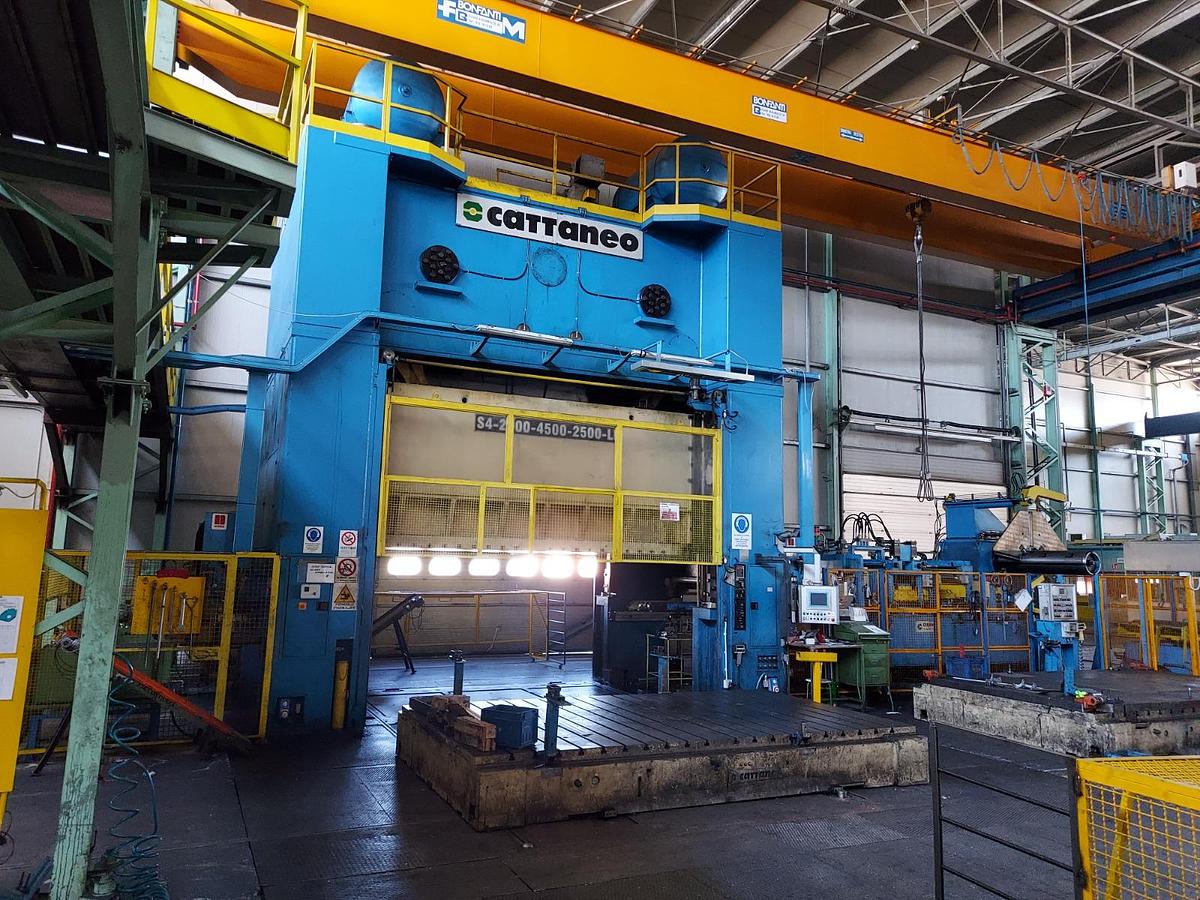

CATTANEO SE4-2000-4500-2500LD, 2000 ton 2-column Link Drive mechanical press, year 2000.

Heavy-duty 4-point press equipped with a large 4500 x 2500 mm slide and moving bolster, 600 mm slide stroke, 1200 mm daylight and 300 mm slide adjustment.

The machine is equipped with 2 moving bolsters with front-back movement and a 185 ton cushion, making it particularly suitable for large automotive stamping and heavy sheet metal forming applications.

Main specifications:

• Manufacturer: CATTANEO

• Model: SE4-2000-4500-2500LD

• Year: 2000

• Capacity: 2000 ton

• Press type: 2-column Link Drive mechanical press

• Number of pressure points: 4

• Slide stroke: 600 mm

• Daylight: 1200 mm

• Slide adjustment: 300 mm

• Slide dimensions: 4500 x 2500 mm

• Moving bolster dimensions: 4500 x 2500 mm

• Moving bolster height: 500 mm

• Number of moving bolsters: 2

• Moving bolster movement: Front / Back

• Speed: 10–20 spm

• Cushion capacity: 185 ton

• Cushion stroke: 50–200 mm

• Front clearance between uprights: 5000 mm

• Side clearance between uprights: 2800 mm

• Main motor: 237 kW

• Slide adjustment motor: 18.5 kW

• Approx. press weight: 440 ton

Large-capacity Link Drive press suitable for automotive stamping, body panels and heavy sheet metal forming.

Available from GENTA Presses.
