MECFOND 1000 Ton 4000 x 2140 mm MB - REBUILD

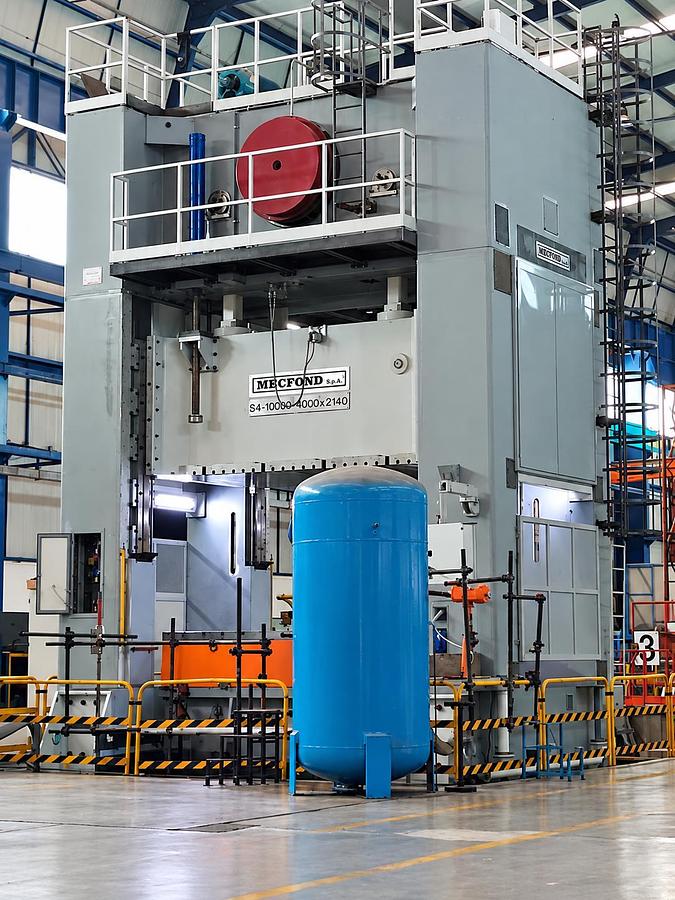

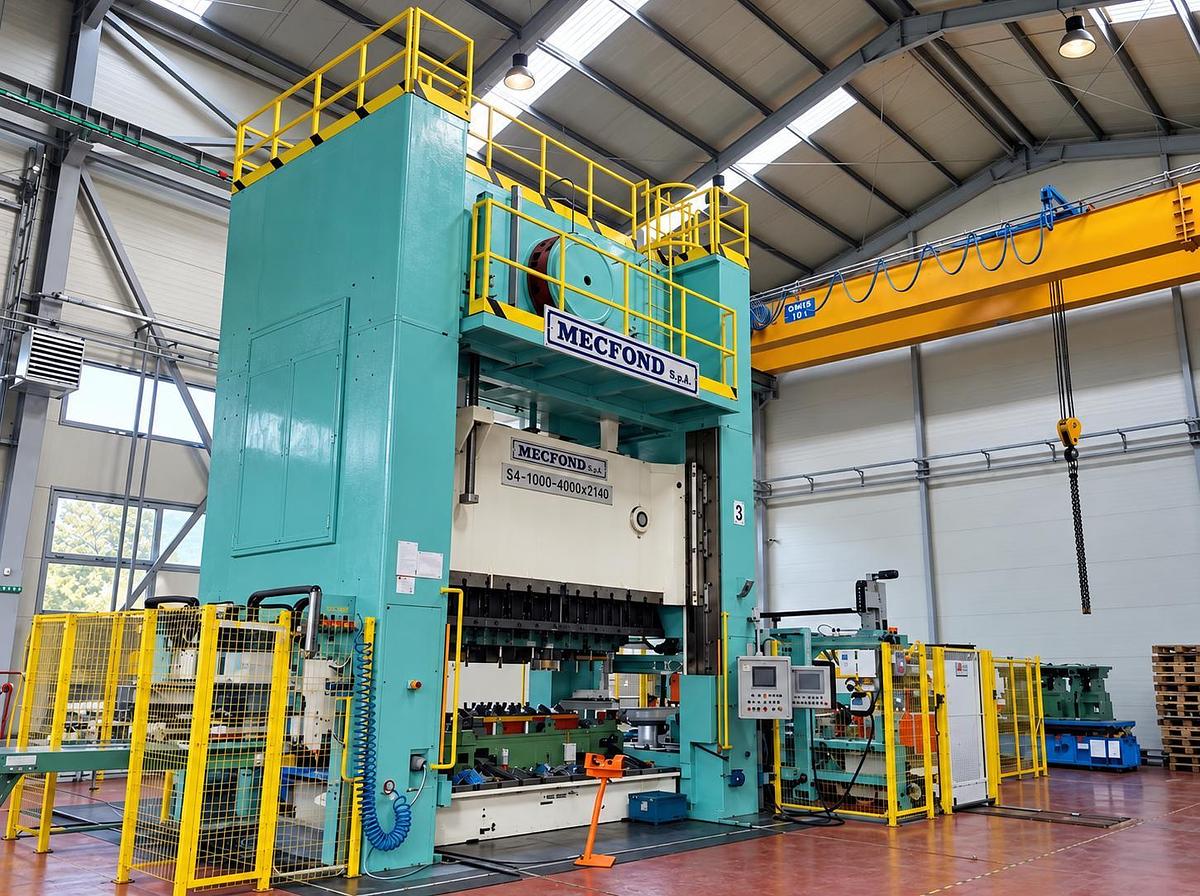

MECFOND 1000 ton H-frame mechanical press, model S4-1000-4000x2140.

The press was completely rebuilt and brought back to like-new condition.

Heavy-duty 4-point eccentric press equipped with a large 4000 x 2140 mm moving bolster, 711 mm slide stroke, 1600 mm shut height and 457 mm slide adjustment.

The machine combines the robust construction of a large MECFOND press with a complete rebuild, making it particularly suitable for demanding automotive and heavy sheet metal stamping applications.

Main specifications:

• Manufacturer: MECFOND

• Model: S4-1000-4000x2140

• Rated capacity: 1000 ton

• Complete rebuild

• Condition: Like-new after complete rebuild

• Drive system: Eccentric

• Number of connecting rods: 4

• Capacity rating distance from BDC: 12.7 mm

• Slide stroke: 711 mm

• Shut height: 1600 mm

• Slide adjustment: 457 mm

• Slide dimensions: 4000 x 2140 mm

• Moving bolster dimensions: 4000 x 2140 mm

• Number of moving bolsters: 1

• Moving bolster exit: Front / Back

• Moving bolster height: 700 mm

• Variable speed: 12–22 spm

• Main motor power: 160 kW with inverter

• Front clearance between uprights: 4050 mm

• Side clearance between uprights: 2265 mm

• Maximum height from floor: 8800 mm

• Approx. press weight: 270 ton

Completely rebuilt heavy-duty press in excellent condition, suitable for large automotive stamping, deep drawing and heavy sheet metal forming applications.

Available from GENTA Presses.
