X3 - WEINGARTEN 1000 Ton LD Press 4000x2200 mm –with CUSHION

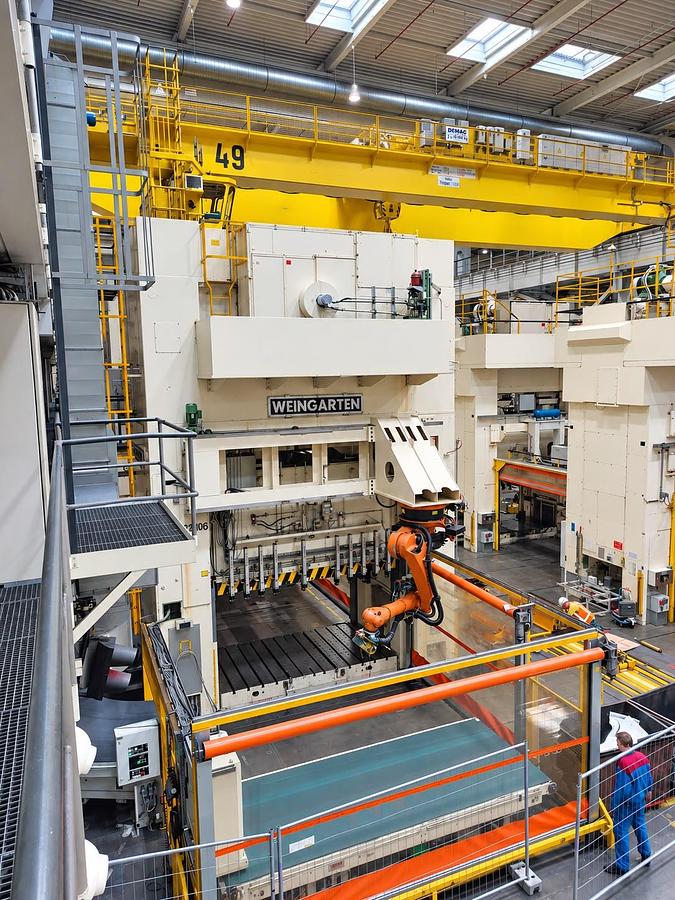

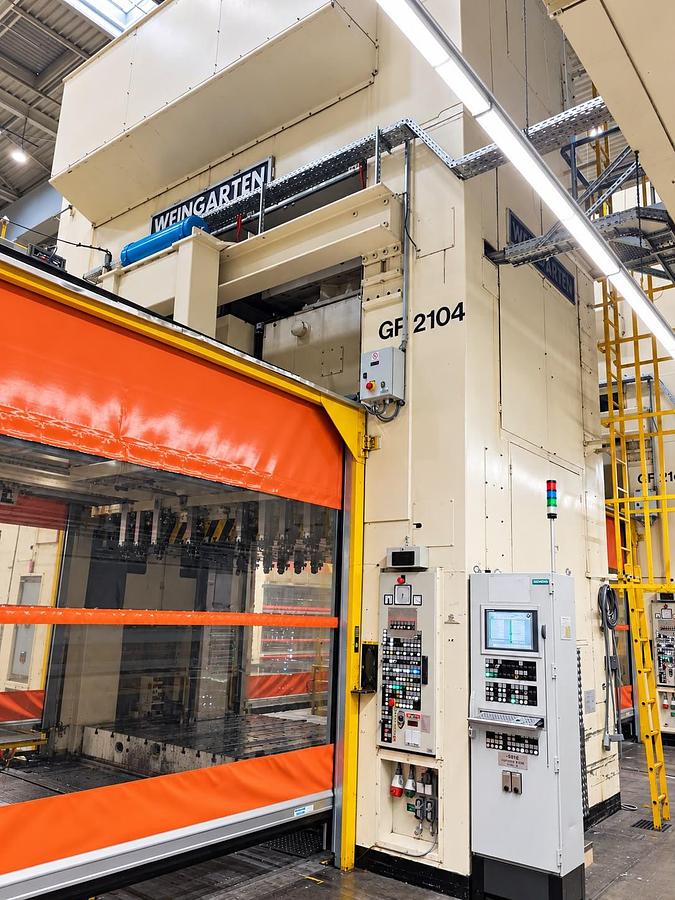

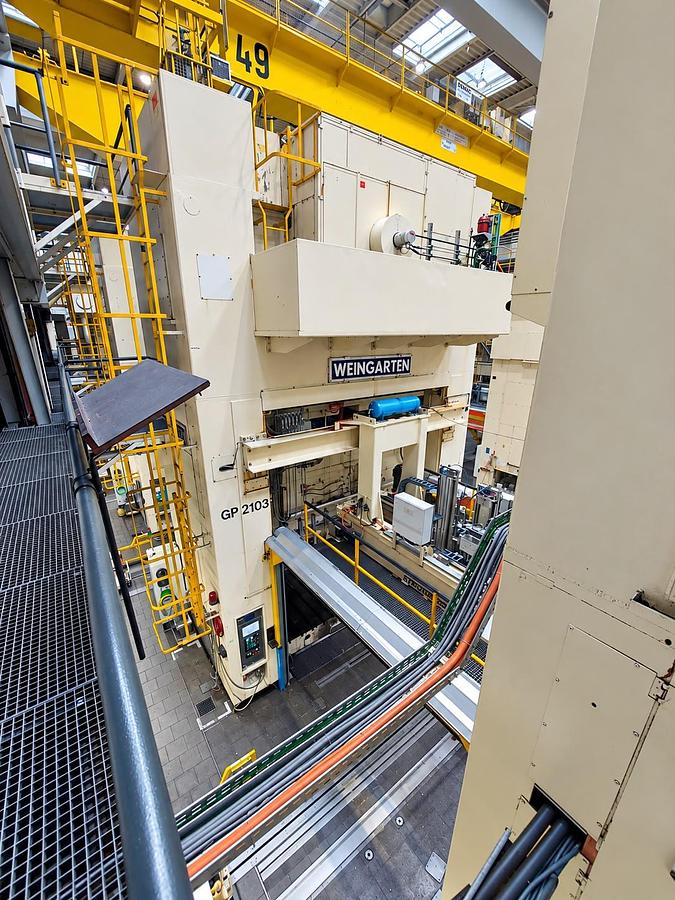

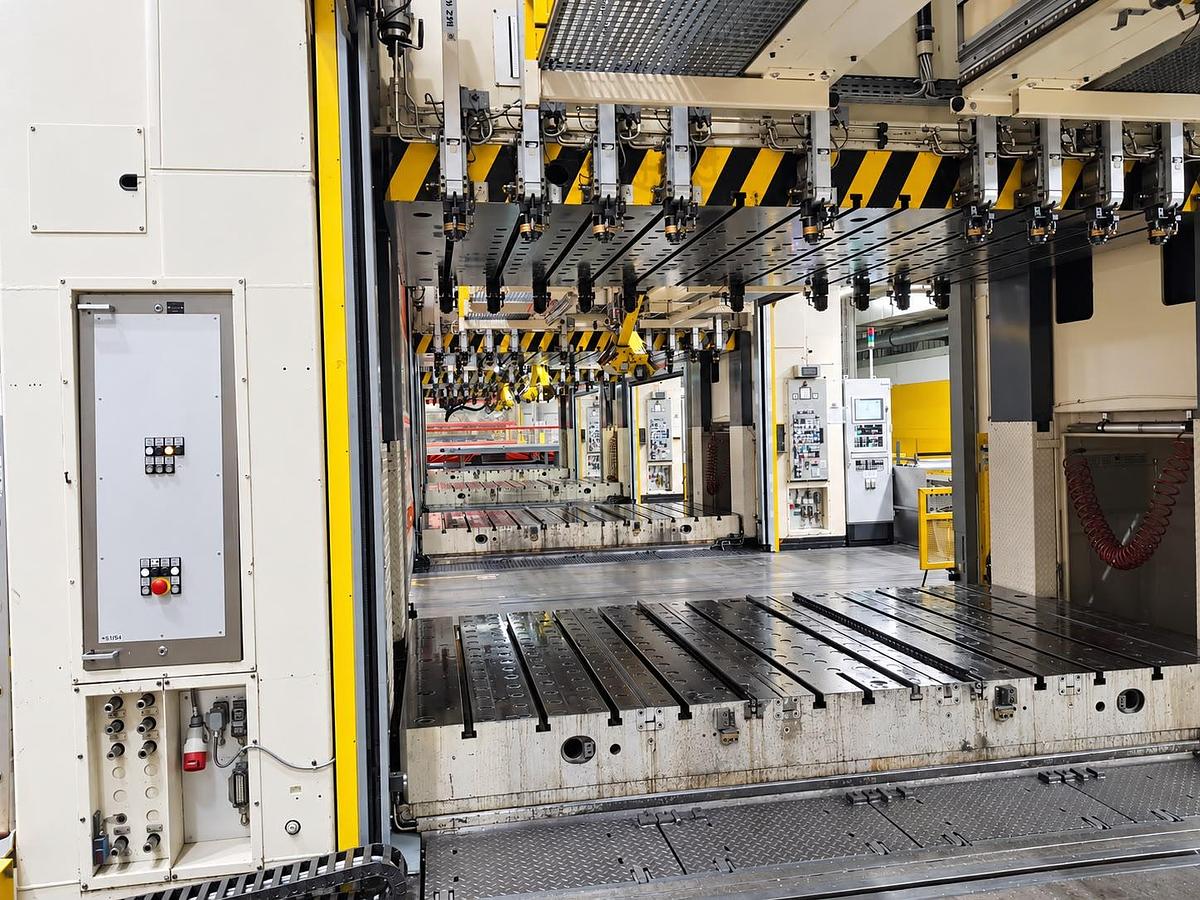

WEINGARTEN VK 1000.40.80 Link Drive mechanical press, 1000 ton capacity, 4-point design.

The press is equipped with a large 4000 x 2200 mm slide and bolster, 800 mm stroke, 1400 mm shut height and 500 mm slide adjustment. Variable speed from 10 to 22 spm.

Main specifications:

• Rated capacity: 1000 ton at 20 mm

• Rated capacity: 1200 ton at 12.5 mm

• Number of connecting rods: 4

• Slide stroke: 800 mm

• Shut height: 1400 mm

• Slide adjustment: 500 mm

• Slide dimensions: 4000 x 2200 mm

• Bolster dimensions: 4000 x 2200 mm

• Bolster height: 300 mm

• Working speed: 10–22 spm

• Set-up speed: 3 spm

• Clearance between uprights: 4400 x 1900 mm

• Approx. press weight: 300,000 kg

Heavy-duty Link Drive press suitable for large automotive stamping applications.

Machine available from GENTA Presses. Contact us for further technical information, photos, videos, dismantling, loading and worldwide delivery.
