SCHULER 600 Ton Mechanical Press – 3350 x 2130 mm - with cushion

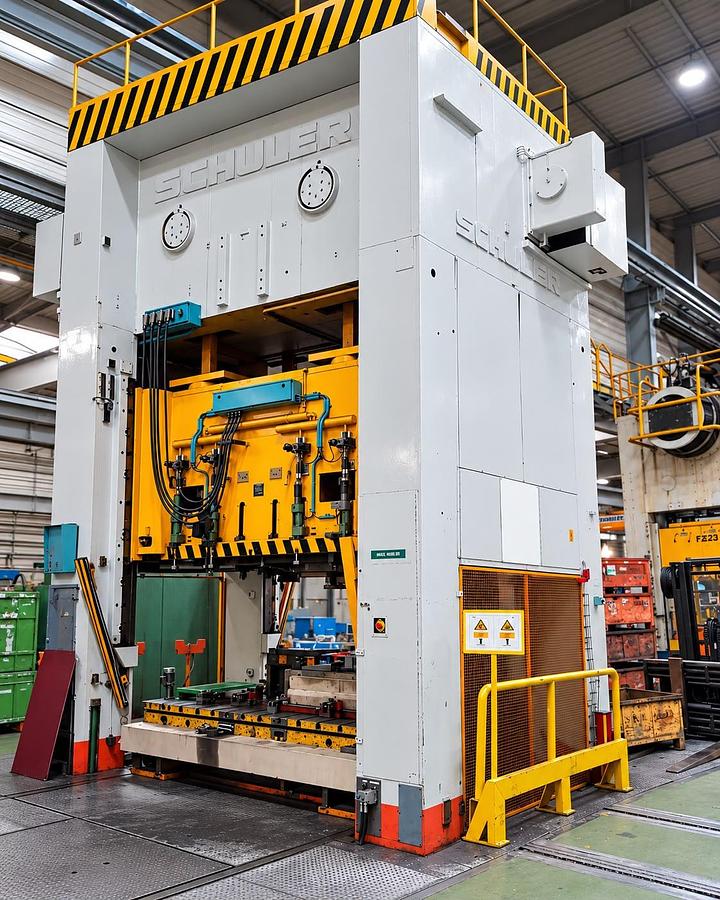

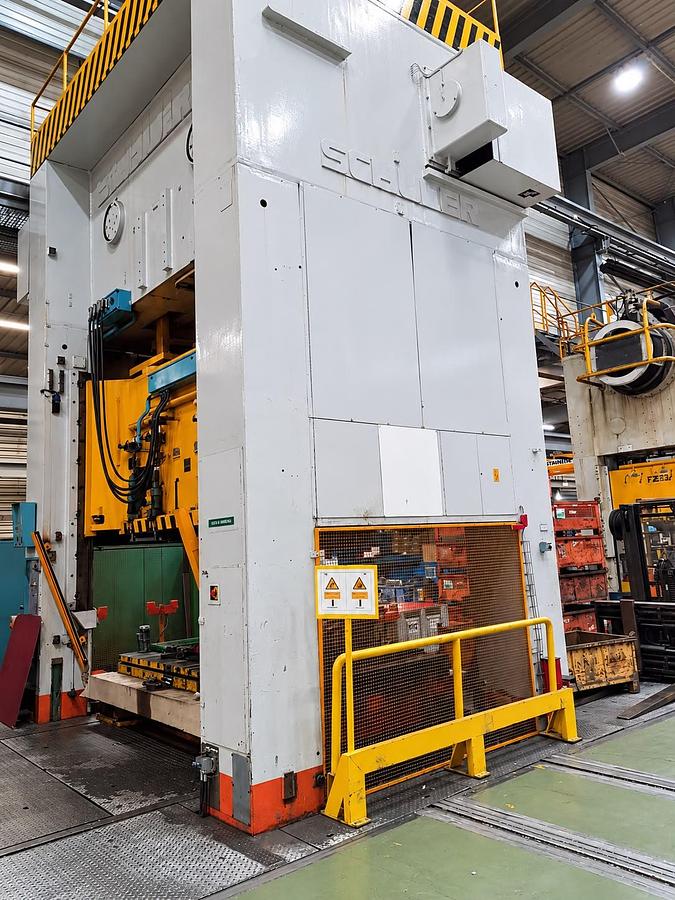

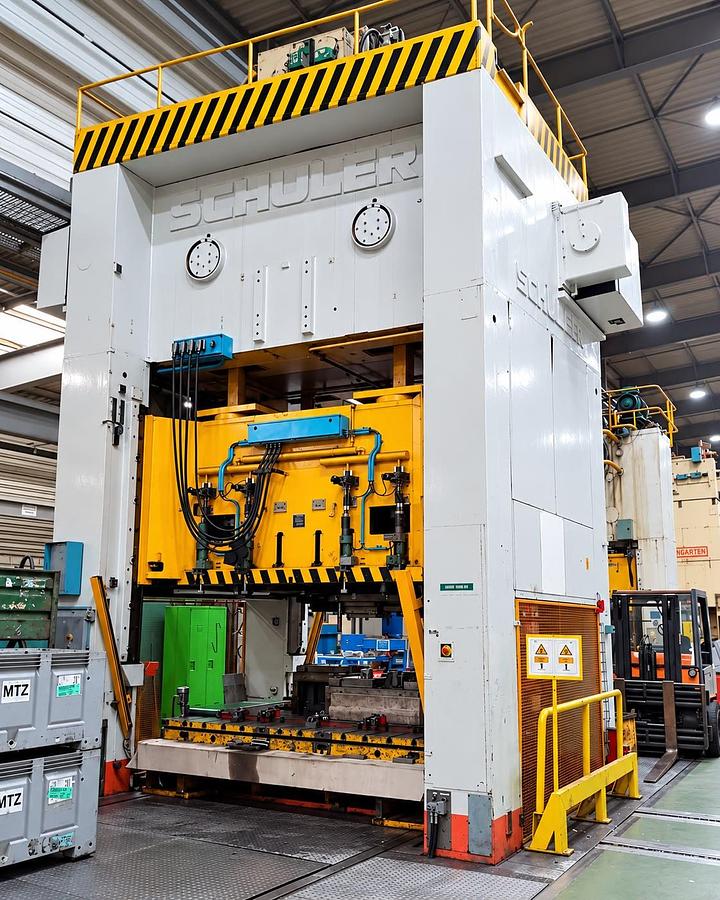

SCHULER 600 ton H-frame mechanical press, model ES4-600-3,35-0.6, year 1969.

Heavy-duty 4-point eccentric press equipped with a large 3350 x 2130 mm moving bolster, 600 mm stroke, 1100 mm shut height and variable speed from 10 to 20 spm.

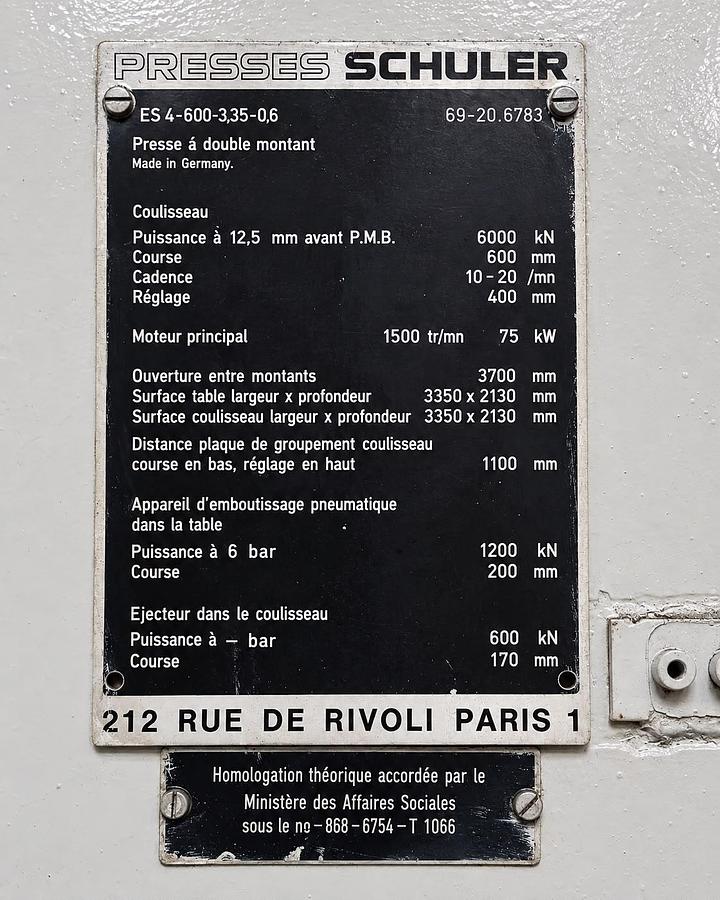

Main specifications:

• Model: ES4-600-3,35-0.6

• Year: 1969

• Rated capacity: 600 ton at 12.5 mm

• Drive: Eccentric

• Number of connecting rods: 4

• Slide stroke: 600 mm

• Shut height: 1100 mm

• Slide adjustment: 400 mm

• Slide dimensions: 3350 x 2130 mm

• Moving bolster dimensions: 3350 x 2130 mm

• Number of moving bolsters: 1

• Moving bolster exit: front / back

• Variable speed: 10–20 spm

• Main motor power: 75 kW

• Front clearance between uprights: 3700 mm

• Side clearance between uprights: 2200 mm

• Approx. press weight: 200,000 kg

• Maximum height from floor: 8000 mm

Large mechanical press suitable for automotive and heavy sheet metal stamping applications.

Available from GENTA Presses. .
