2019 MECFOND 600 Ton 3950X2300 mm - MOVING BOLSTER

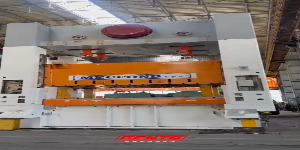

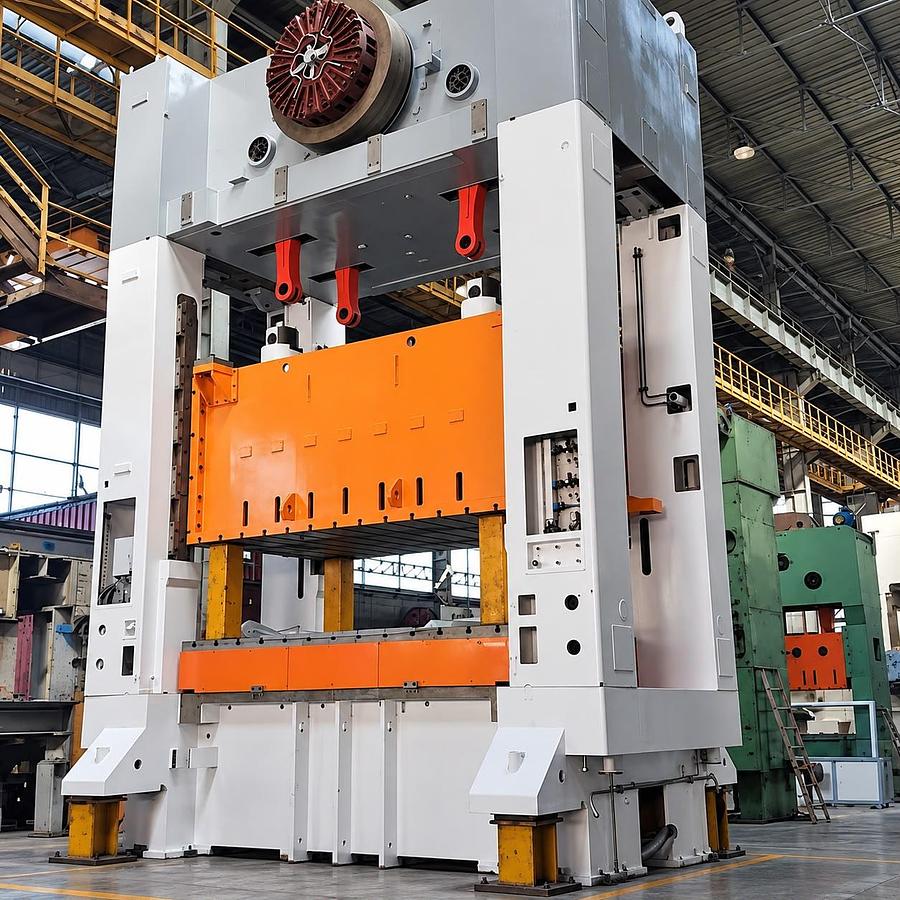

MECFOND 600 ton H-frame mechanical press, model S4-600-3950x2300.

Heavy-duty 4-point eccentric press equipped with a large 3950 x 2300 mm front/back moving bolster, 600 mm slide stroke, 1500 mm shut height and 600 mm slide adjustment.

Main specifications:

• Rated capacity: 600 ton

• Model: S4-600-3950x2300

• Capacity rating distance from BDC: 12.7 mm

• Number of connecting rods: 4

• Slide stroke: 600 mm

• Shut height: 1500 mm

• Slide adjustment: 600 mm

• Slide dimensions: 3950 x 2300 mm

• Moving bolster dimensions: 3950 x 2300 mm

• Number of moving bolsters: 1

• Moving bolster exit: front / back

• Moving bolster height: 500 mm

• Variable speed: 10–22 spm

• Main motor: 75 kW with inverter

• Front clearance between uprights: 4000 mm

• Side clearance between uprights: 1800 mm

• Approx. press weight: 180 ton

• Maximum height from floor: 8100 mm

• New electrical system

• Siemens inverter

• Siemens S7-1500 PLC
