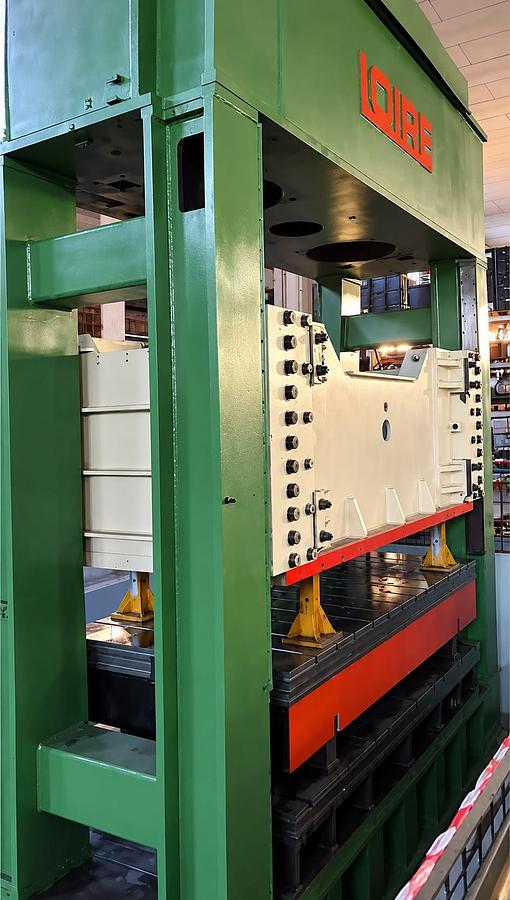

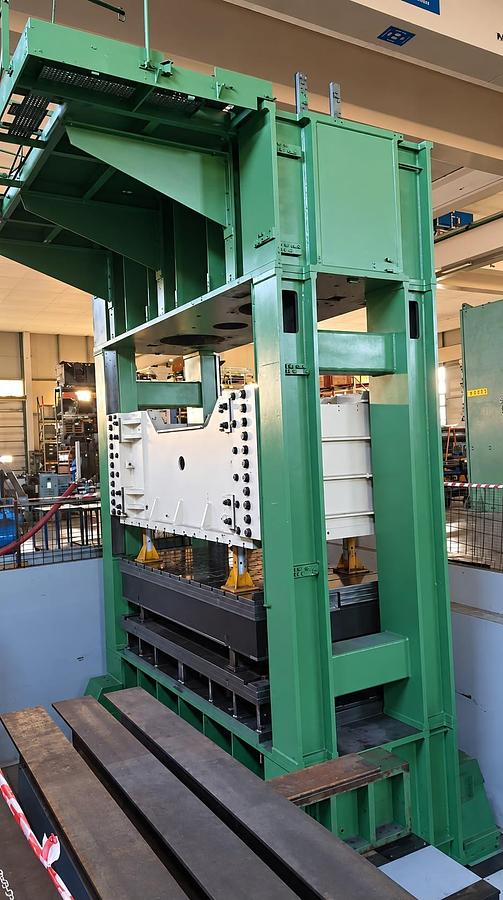

LOIRE 2000 Ton Hydraulic Press – 4000 x 1900 mm

LOIRE SMC 2000, 2000 ton hydraulic press.

Heavy-duty hydraulic press equipped with a 4000 x 1900 mm moving bolster, 1500 mm slide stroke, 1700 mm maximum opening and 400 ton cushion.

The machine is equipped with a new REXROTH hydraulic system, new moving bolster and new cushion system. The electrical system is still to be completed.

Main specifications:

• Manufacturer: LOIRE

• Model: SMC 2000

• Capacity: 2000 ton

• Year / new market introduction: 2022

• Slide stroke: 1500 mm

• Rapid approach speed: 400 mm/sec

• Working speed: 35 mm/sec

• Return speed: 300 mm/sec

• Ram size: 4000 x 1900 mm

• Moving bolster size: 4000 x 1900 mm

• Distance between columns: 4100 mm

• Side opening: 1100 mm

• Maximum opening between ram and moving bolster: 1700 mm

• Cushion capacity: 400 ton

• Cushion stroke: 350 mm

• Cushion fast return speed: 64 mm/sec

• Total installed power: 350 kW

• Approx. press weight: 240,000 kg

• Hydraulic system: New REXROTH

• Moving bolster: New

• Cushion system: New

• Electrical system: To be completed

Large-capacity hydraulic press suitable for automotive stamping, deep drawing and heavy sheet metal forming applications.

Available from GENTA Presses.
