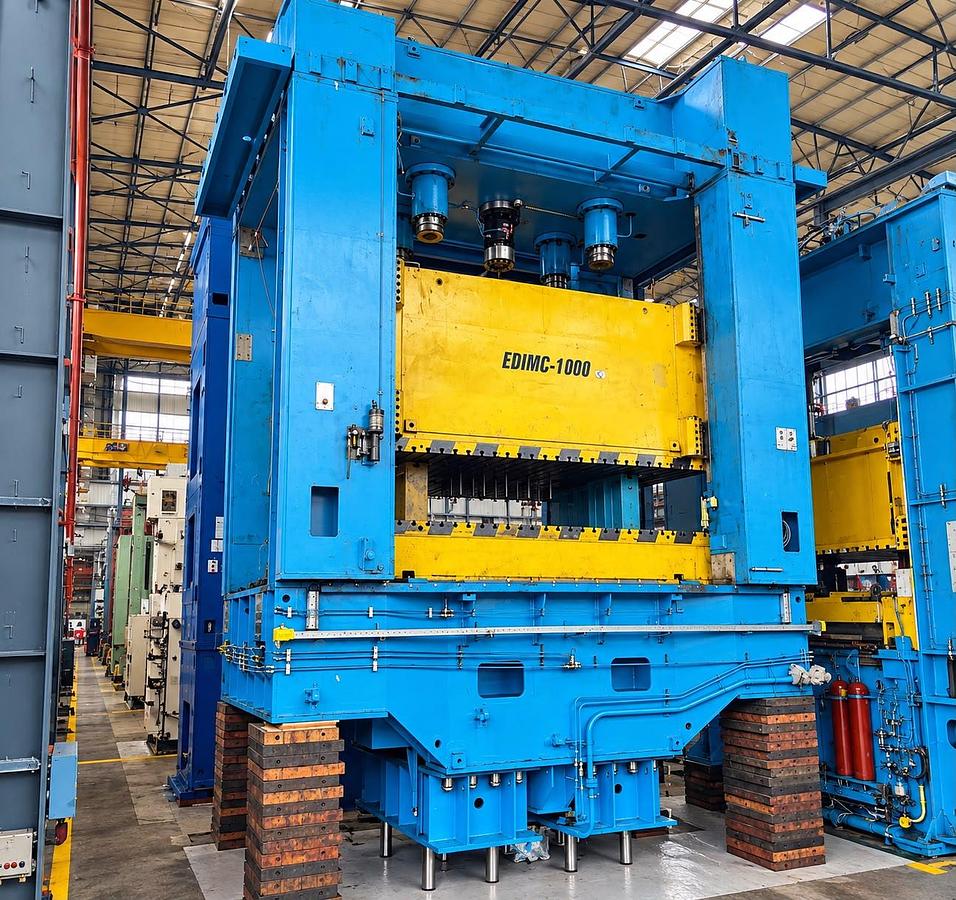

LOIRE SAFE 1000 Ton Hydraulic Press – 5000 x 2500 mm

LOIRE SAFE 1000 ton hydraulic press, model EDIMC 1-400-250/50-25/20-15, year 2003.

Heavy-duty hydraulic press equipped with a large 5000 x 2500 mm side moving bolster, 1500 mm slide stroke, 2000 mm maximum opening and 400 ton cushion.

Main specifications:

• Manufacturer: LOIRE SAFE

• Model: EDIMC 1-400-250/50-25/20-15

• Year: 2003

• Capacity: 1000 ton

• Slide stroke: 1500 mm

• Rapid approach speed: 400 mm/sec

• Working speed: 4–72 mm/sec

• Ram size: 5000 x 2500 mm

• Side moving bolster size: 5000 x 2500 mm

• Side opening: 2600 mm

• Maximum opening between ram and moving bolster: 2000 mm

• Cushion capacity: 400 ton

• Cushion stroke: 350 mm

• Total installed power: 400 kW

• Approx. press weight: 205,000 kg

• Height above floor: 7160 mm

Large hydraulic press suitable for automotive stamping, deep drawing and heavy sheet metal forming applications.

Available from GENTA Presses.
