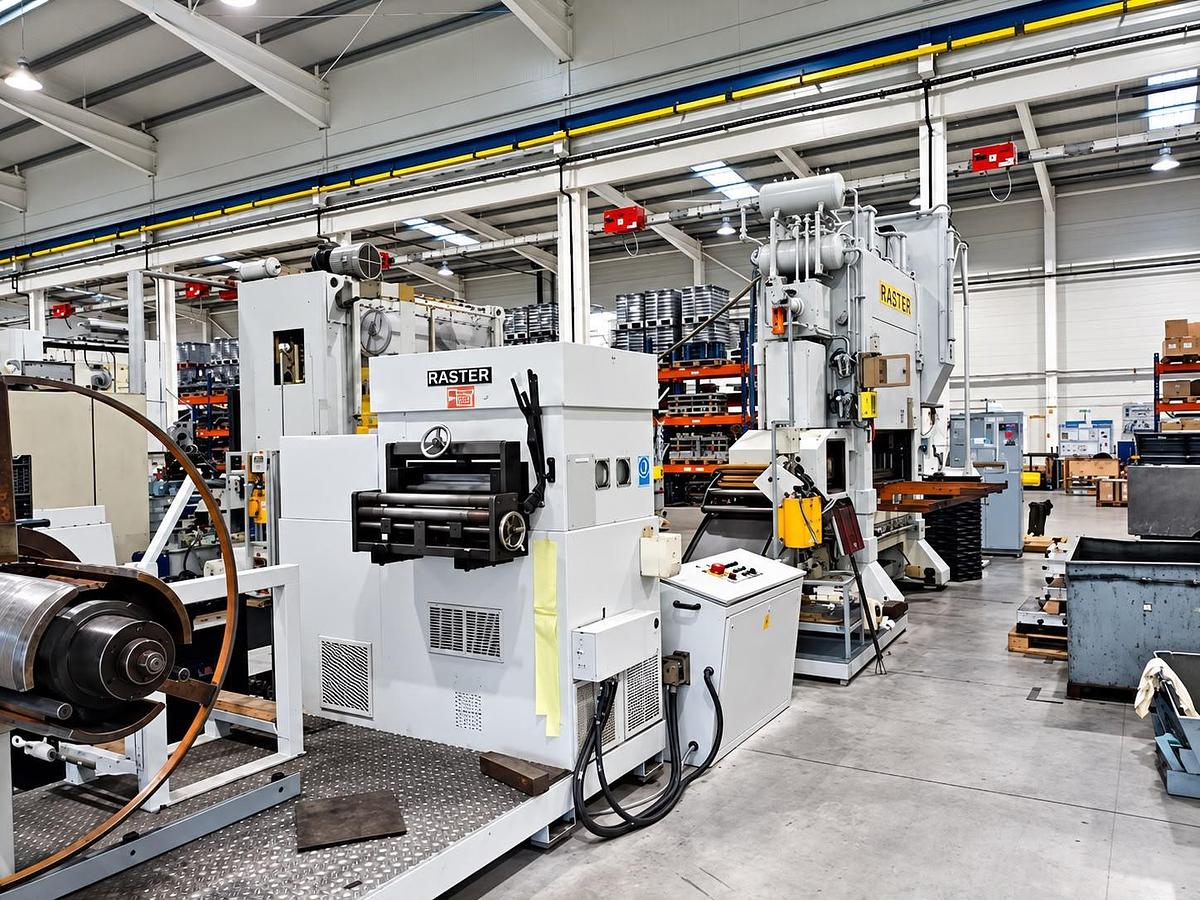

RASTER 150 Ton High-Speed Press (180 SPM) + FEEDING LINE

RASTER 150 ton H-frame high-speed mechanical press, model 150/1400 NL-4S, year 1981.

Complete stamping system supplied with the original RASTER feeding line and decoiler. The machine features variable stroke adjustment and a maximum speed of 180 strokes per minute, making it suitable for progressive and high-volume sheet metal production.

Main specifications:

• Manufacturer: RASTER

• Model: 150/1400 NL-4S

• Year: 1981

• Capacity: 150 ton

• Drive system: Eccentric

• Variable slide stroke: 20–120 mm

• Slide adjustment: 100 mm

• Slide dimensions: 1460 x 620 mm

• Table dimensions: 1500 x 800 mm

• Variable speed: 40–180 spm

• Side window: 500 x H 255 mm

• Front passage: 1460 mm

• Original RASTER feeding line

• Decoiler included

Complete high-speed stamping solution suitable for progressive dies and series production.

Available from GENTA Presses.
