RAVNE 200 Ton High-Speed Press 180 spm + FEEDING LINE

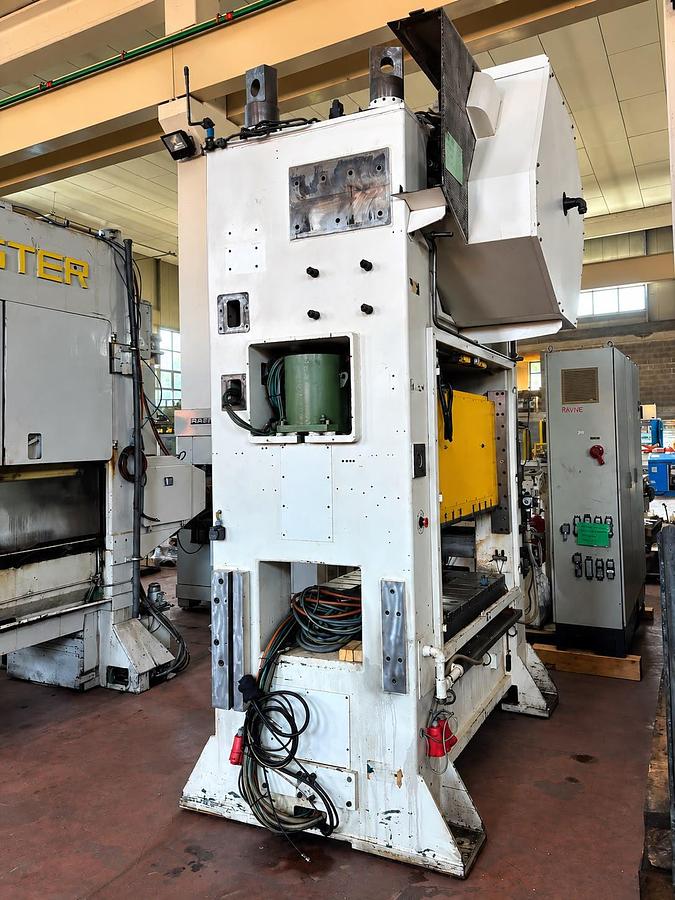

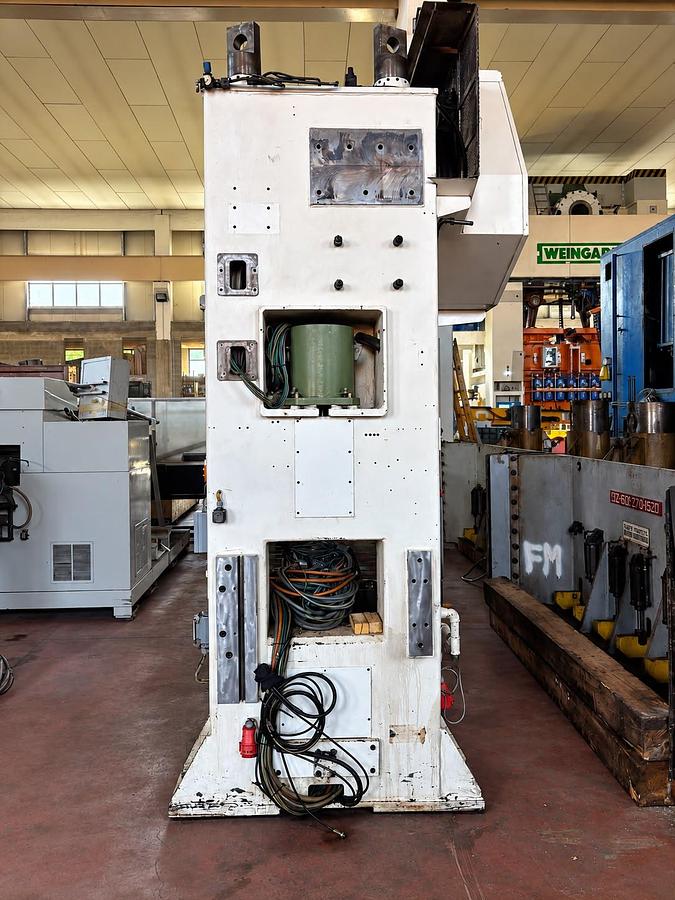

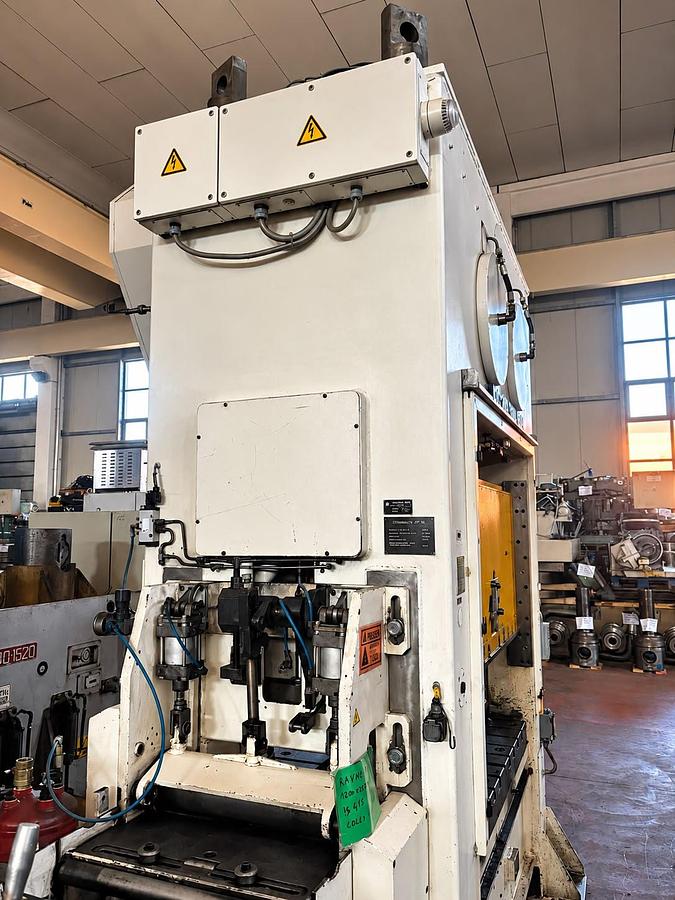

RAVNE 200 ton H-frame high-speed mechanical press, model VPS200-1300-900, year 2004.

Complete stamping system equipped with the original RAVNE feeding line and decoiler. The press features a variable slide stroke from 20 to 120 mm and operating speed up to 180 strokes per minute, making it particularly suitable for progressive dies and high-volume sheet metal production.

Main specifications:

• Manufacturer: RAVNE

• Model: VPS200-1300-900

• Year: 2004

• Capacity: 200 ton at 4 mm

• Press type: H-frame mechanical press

• Drive system: Eccentric

• Variable slide stroke: 20–120 mm

• Shut height: 360 mm

• Slide adjustment: 100 mm

• Slide dimensions: 1300 x 860 mm

• Table dimensions: 1300 x 900 mm

• Variable speed: 60–180 spm

• Front passage: 1330 mm

• Side window: 500 x H 410 mm

• Original RAVNE feeding line

• Decoiler included

Complete high-speed stamping solution suitable for progressive stamping and series production.

Available from GENTA Presses. Contact us for technical documentation, additional photos, videos, inspection, loading and worldwide delivery.
