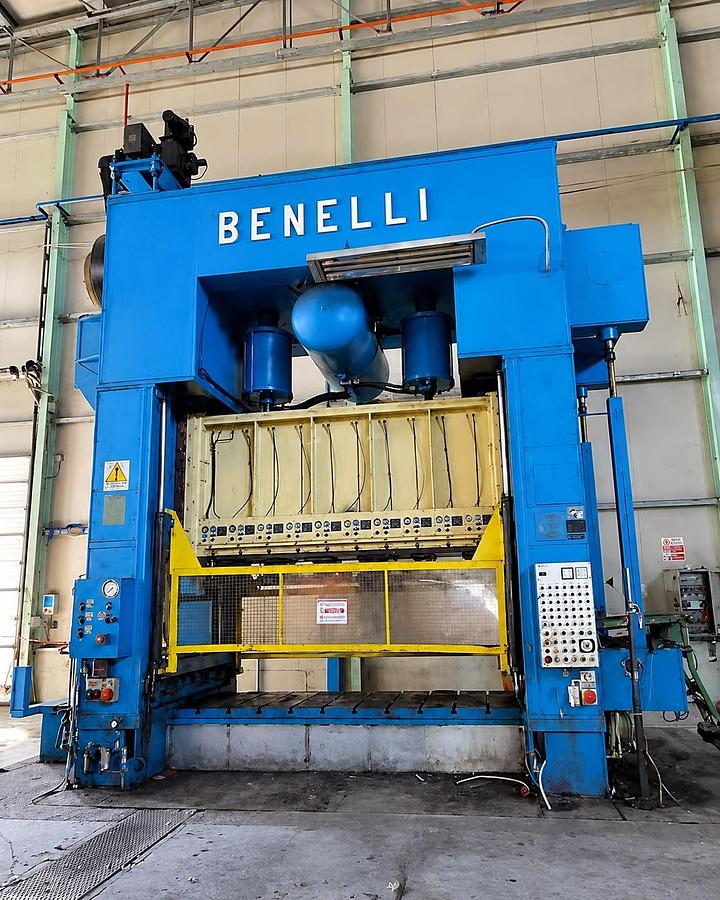

BENELLI 400 Ton Mechanical Press – 3400 x 1200 mm

BENELLI 400 ton H-frame mechanical press, model PMT400/10.1/320/2.1P.

Heavy-duty 2-point eccentric press equipped with a 3400 x 1200 mm slide and bolster, 400 mm stroke, 1000 mm shut height and variable speed from 15 to 40 spm.

Main specifications:

• Manufacturer: BENELLI

• Model: PMT400/10.1/320/2.1P

• Rated capacity: 400 ton

• Drive system: Eccentric

• Number of connecting rods: 2

• Slide stroke: 400 mm

• Shut height: 1000 mm

• Slide adjustment: 50 mm

• Slide dimensions: 3400 x 1200 mm

• Bolster dimensions: 3400 x 1200 mm

• Variable speed: 15–40 spm

• Side clearance between uprights: 1200 mm

• Approx. press weight: 90,000 kg

Suitable for automotive and general sheet metal stamping applications.

Available from GENTA Presses.
