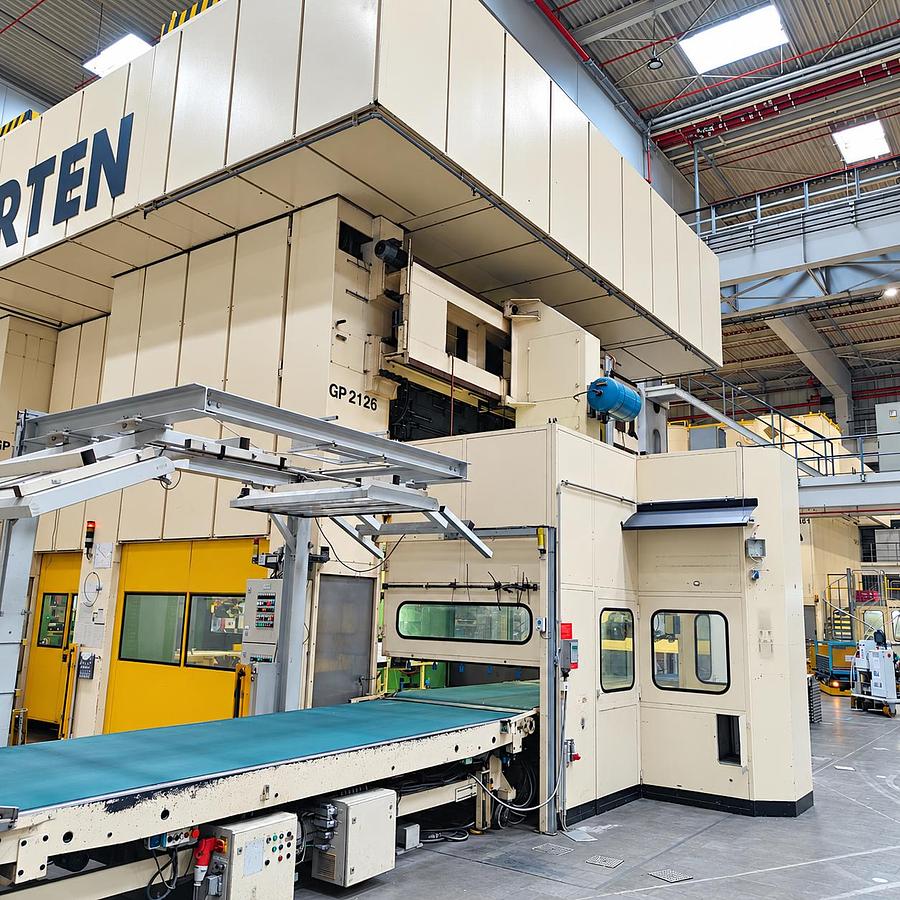

7500 Ton Tandem Press Line – 5 WEINGARTEN 1000 Ton + 1 SMG-SCHULER 2500 Ton

Complete 7,500 ton tandem press line composed of 1 SMG-SCHULER 2500 ton hydraulic press and 5 WEINGARTEN 1000 ton Link Drive mechanical presses - EX BMW

Heavy-duty automotive stamping line suitable for large sheet metal forming and body panel production.

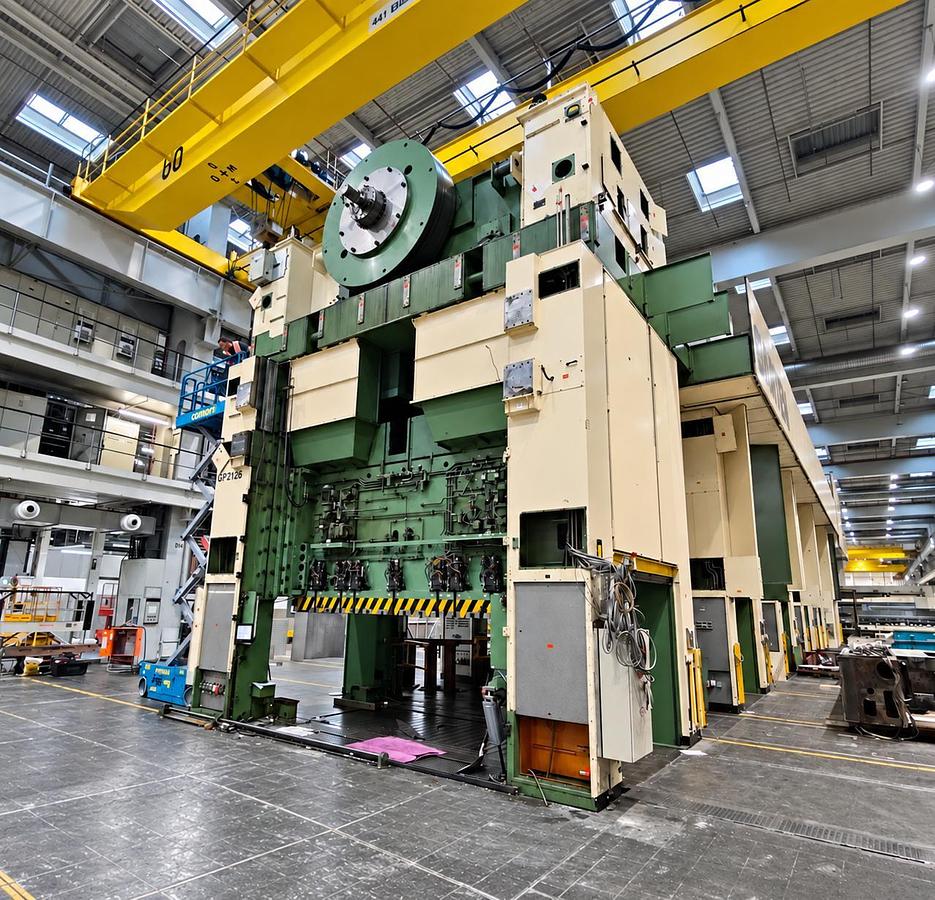

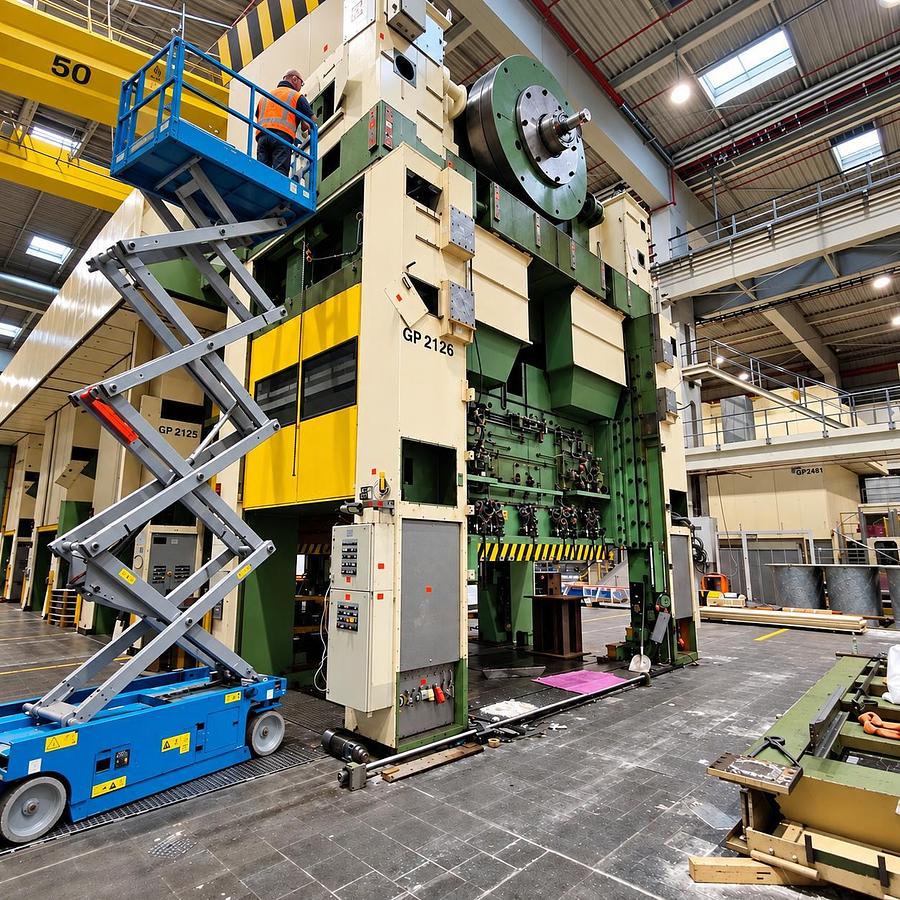

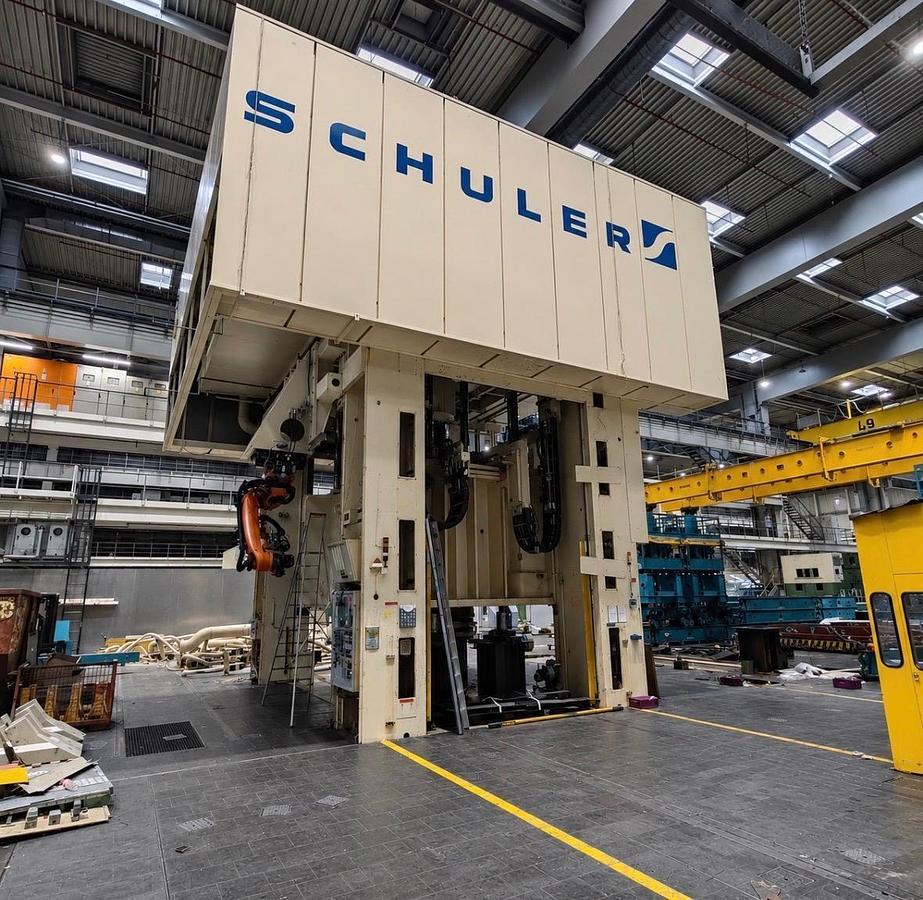

SMG-SCHULER HYDRAULIC PRESS – 2500 TON

• Model: HZPUIT 2500/1800-5000/2400

• Total force: 2500 ton

• Maximum ram capacity: 1800 ton

• Slide stroke: 1960 mm

• Maximum daylight: 3060 mm

• Table size: 3500 x 1650 mm

• Upper blank holder capacity: 700 ton

• Upper blank holder stroke: 1850 mm

• Blank holder area: 5000 x 2400 mm

• Moving bolster size: 5000 x 2400 mm

• Cushion capacity: 600 ton

• Cushion stroke: 320 mm

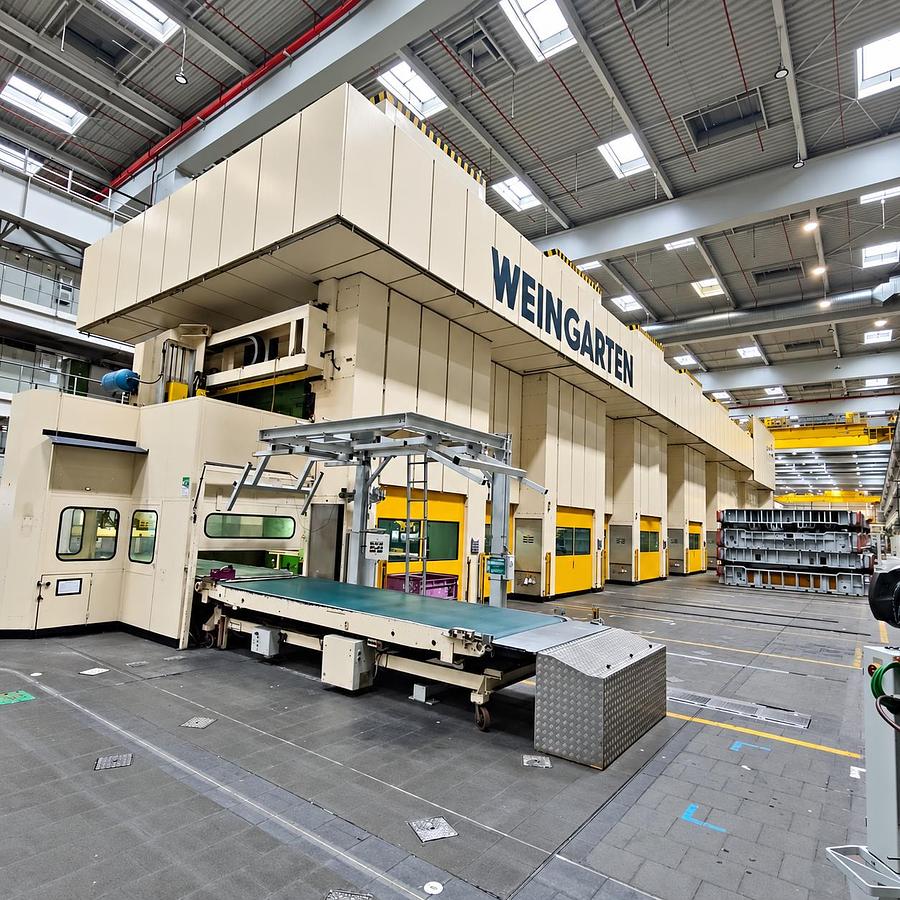

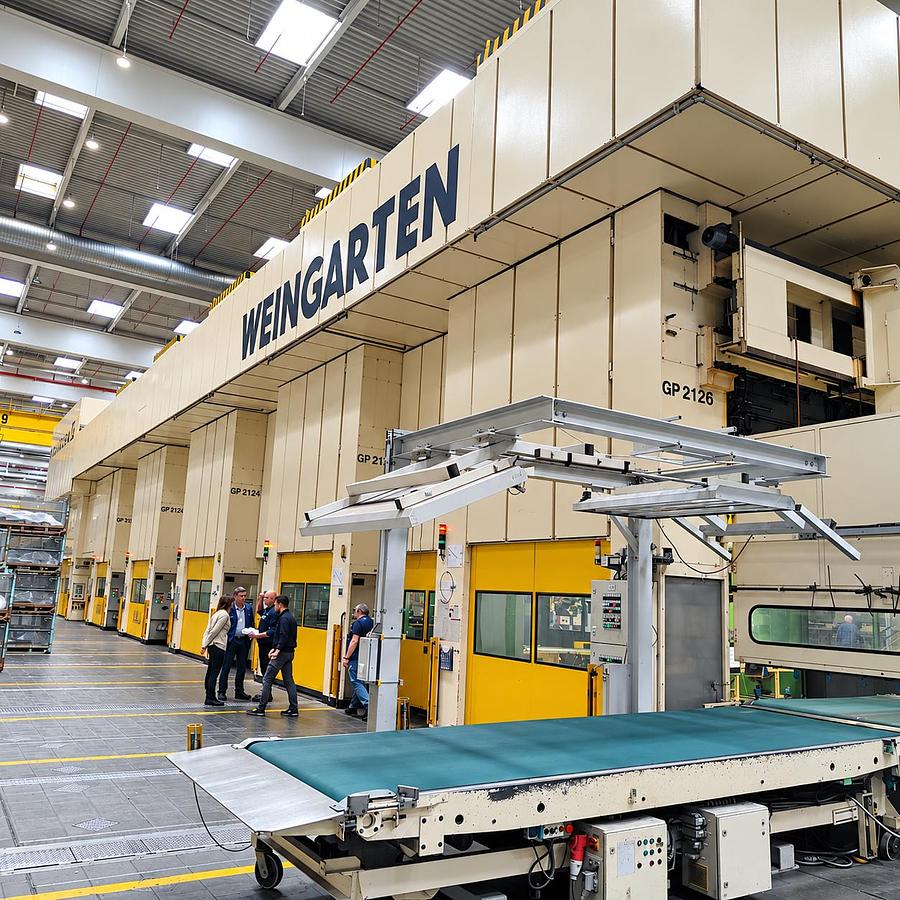

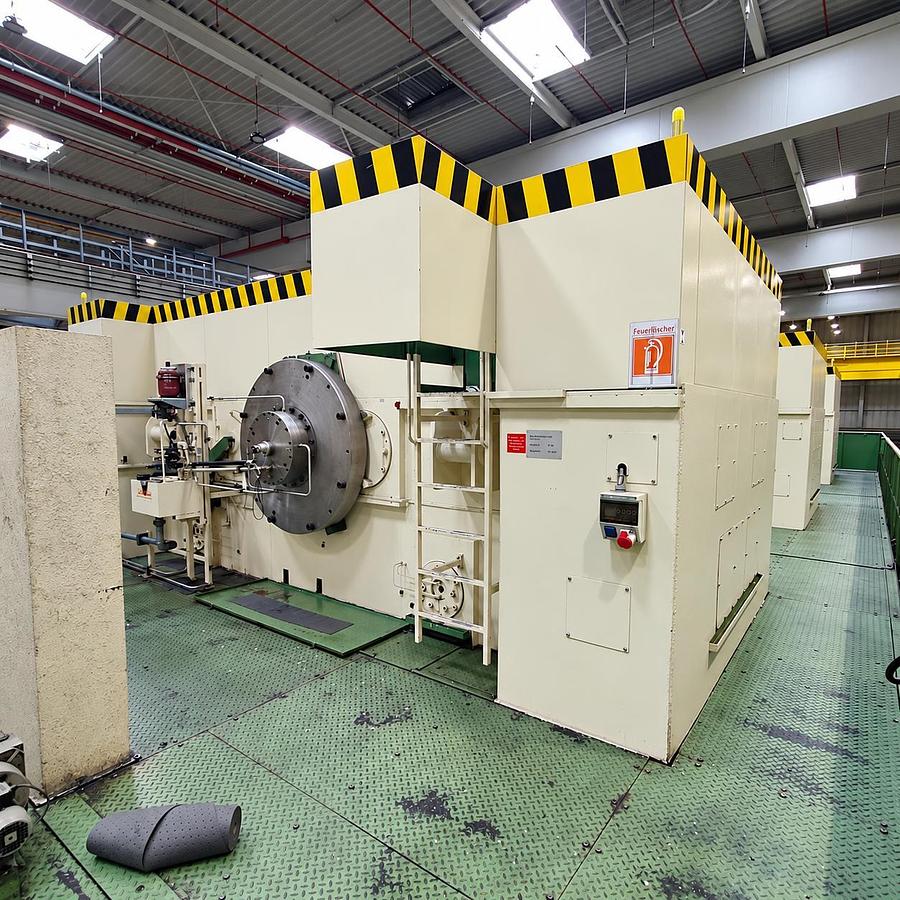

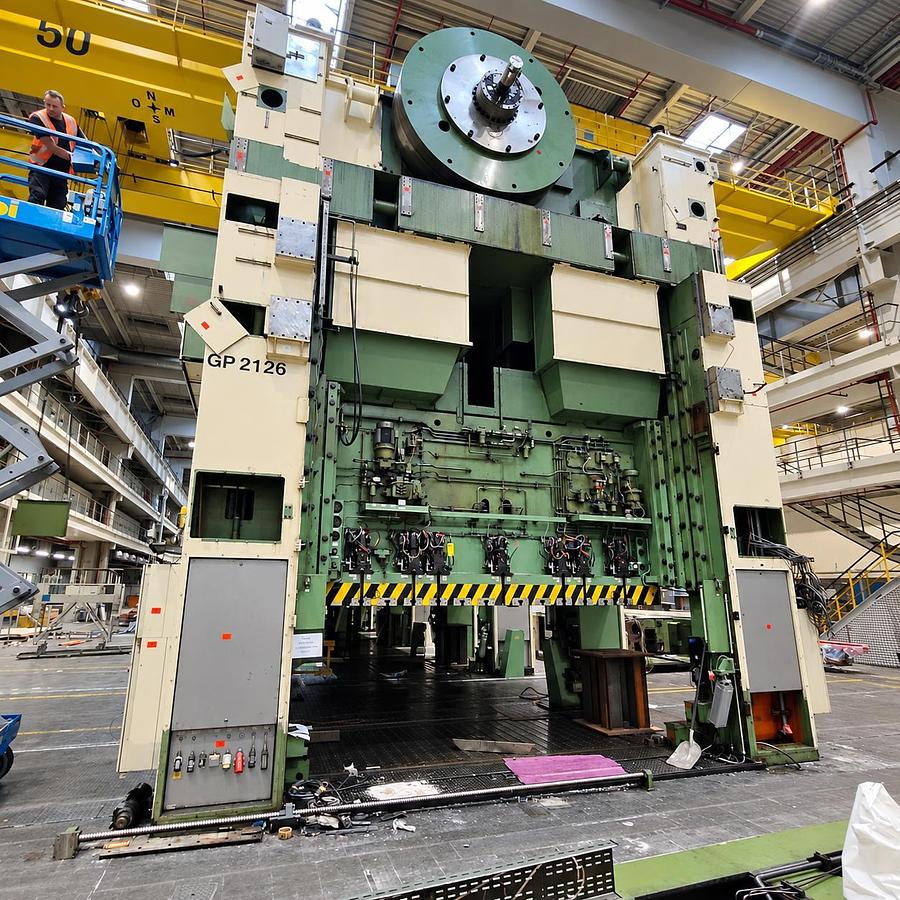

5 x WEINGARTEN LINK DRIVE PRESSES – 1000 TON EACH

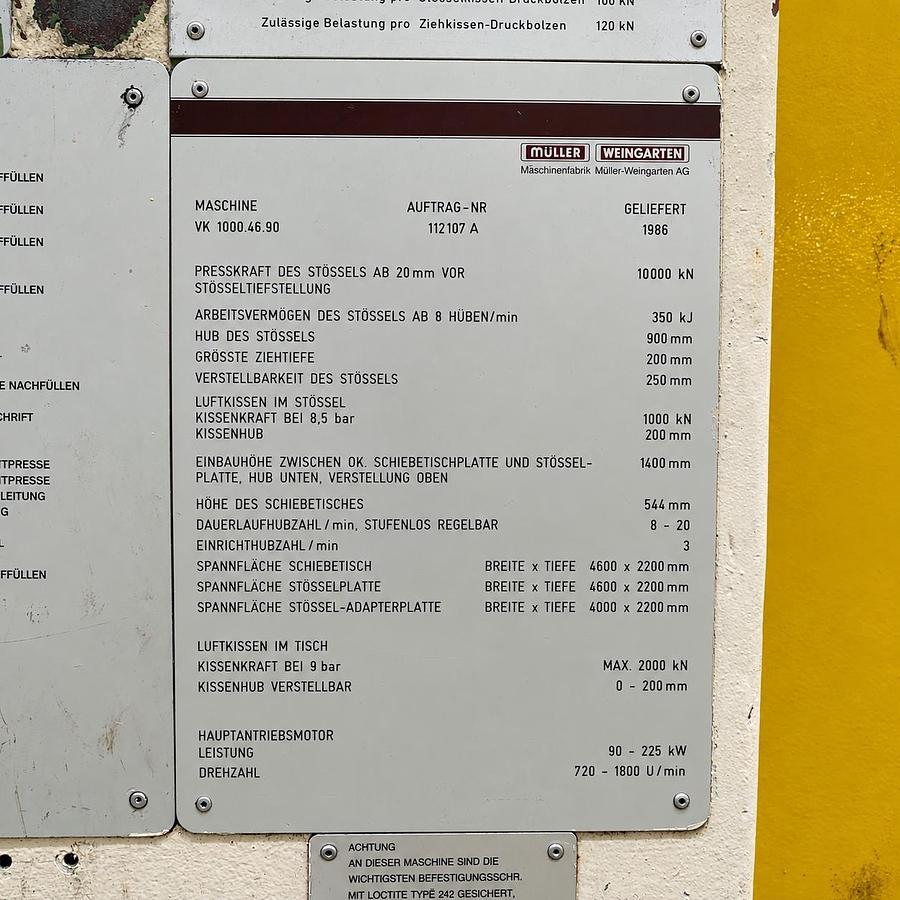

• Model: VK 1000.46.90

• Drive system: Link Drive

• Rated capacity: 1000 ton at 20 mm

• Number of connecting rods: 4

• Slide stroke: 900 mm

• Daylight: 1400 mm

• Slide dimensions: 4600 x 2200 mm

• Bolster dimensions: 4600 x 2200 mm

• Side moving bolster height: 550 mm

• Variable speed: 8–20 spm

• Die setting speed: 3 spm

• Cushion in bed: No

• Front opening: 4800 mm

Complete line available from GENTA Presses.
