WEINGARTEN 1000 Ton LINK DRIVE 3150 x 1900 mm - TRANSFER - 2 MB -

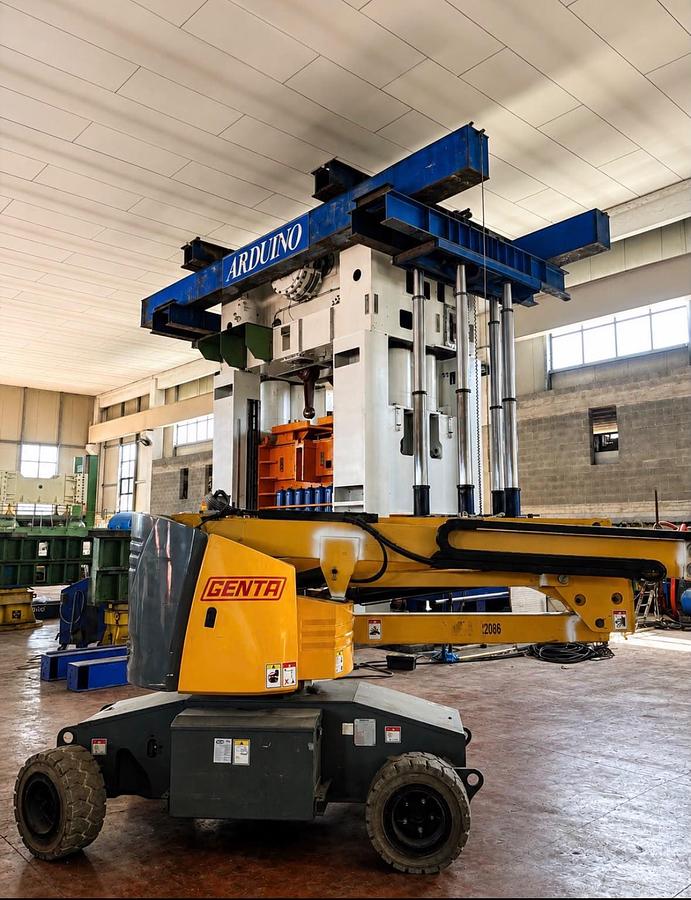

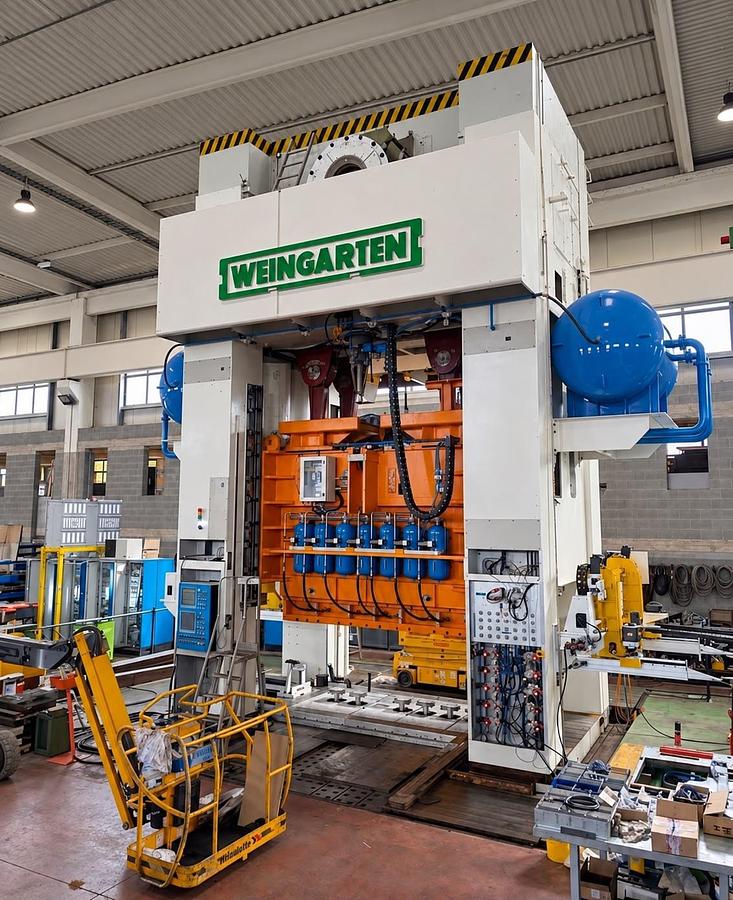

WEINGARTEN S1000-04-75, 1000 ton eccentric Link Drive mechanical press, year 1982.

Heavy-duty press equipped with 2 moving bolsters, 3150 x 1900 mm working area, 700 mm slide stroke, 1400 mm shut height and variable speed from 8 to 22 spm.

Main specifications:

• Model: S1000-04-75

• Year: 1982

• Rated capacity: 1000 ton at 20 mm

• Drive: Eccentric Link Drive

• Slide stroke: 700 mm

• Shut height: 1400 mm

• Slide adjustment: 400 mm

• Slide dimensions: 3150 x 1900 mm

• Moving bolster dimensions: 3150 x 1900 mm

• Number of moving bolsters: 2

• Moving bolster exit: front / rear

• Variable speed: 8–22 spm

• Side window: 2200 x H 2150 mm

• Front passage: 3600 mm

Heavy-duty Link Drive press suitable for automotive and large sheet metal stamping applications.
