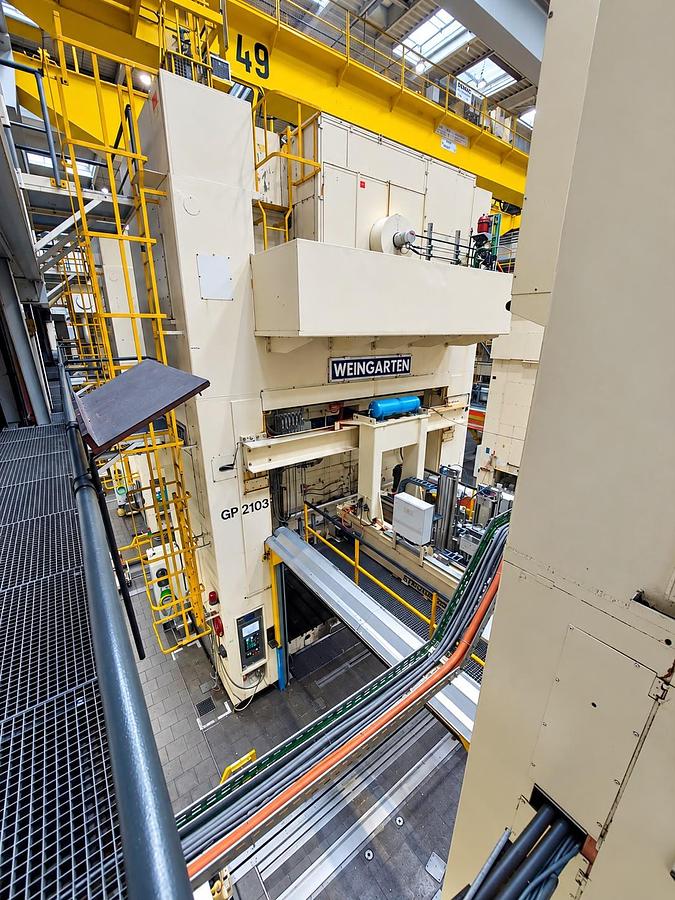

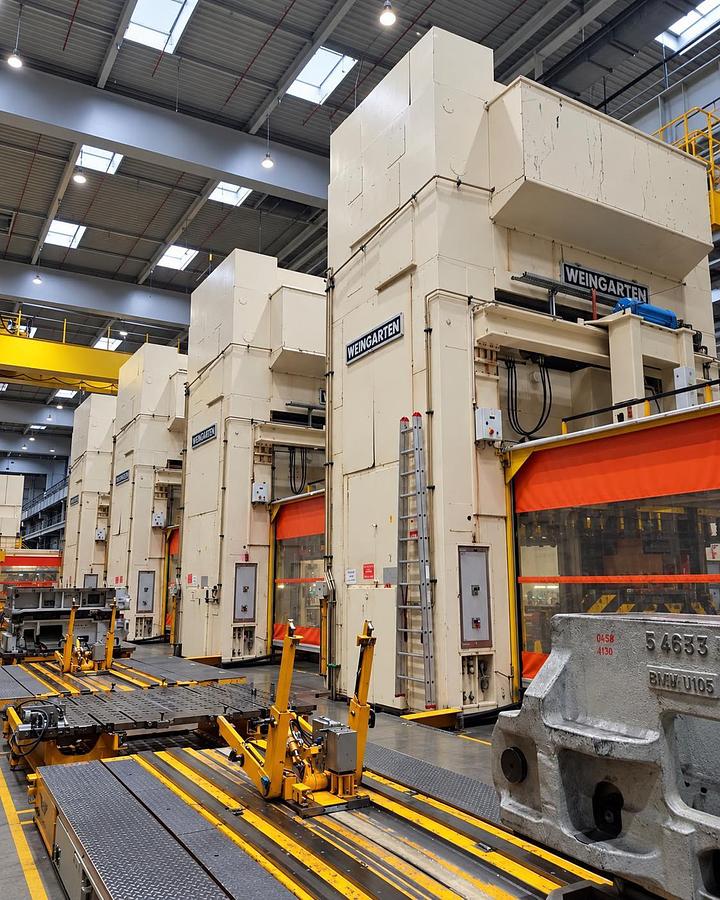

X 3 - WEINGARTEN 1000 Ton Link Drive Press 4000 X 2200 mm - with CUSHION

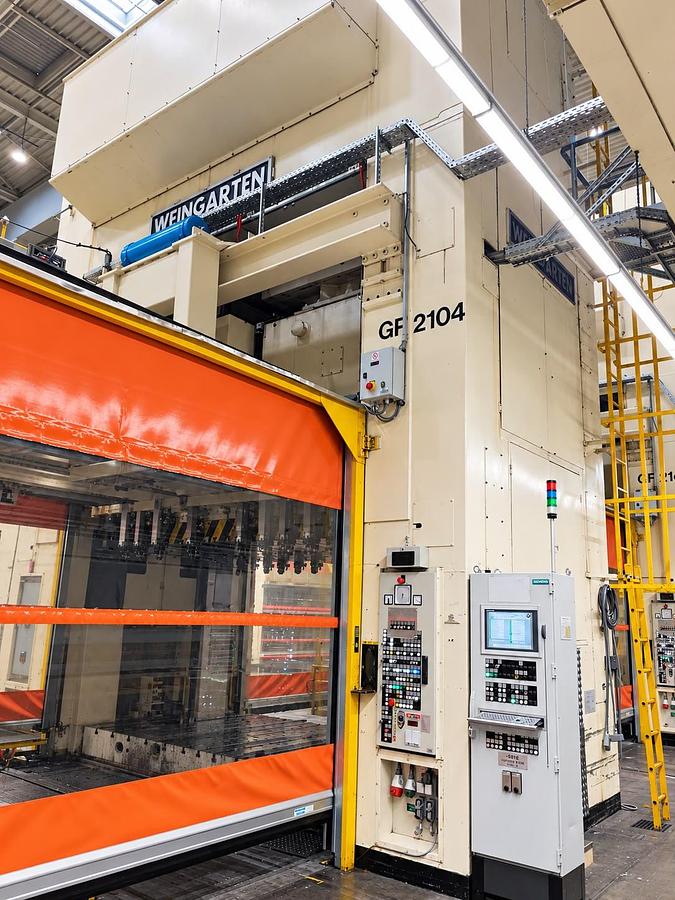

X 1 - WEINGARTEN 1000 ton Link Drive press , designed for high-capacity automotive sheet metal stamping.

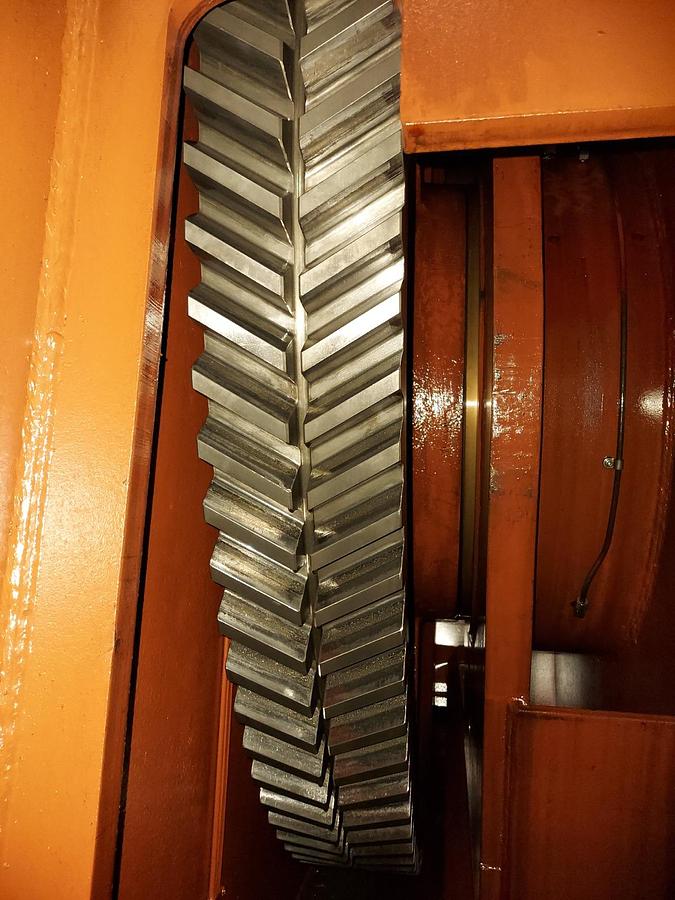

The machine features a 4-point eccentric Link Drive system, 4000 x 2200 mm working area, 800 mm stroke and 1400 mm shut height.

Technical data:

• Model: VK 1000.40.80

• Rated capacity: 1000 ton

• Maximum rated capacity: 1200 ton at 12.5 mm

• Number of connecting rods: 4

• Stroke: 800 mm

• Slide adjustment: 500 mm

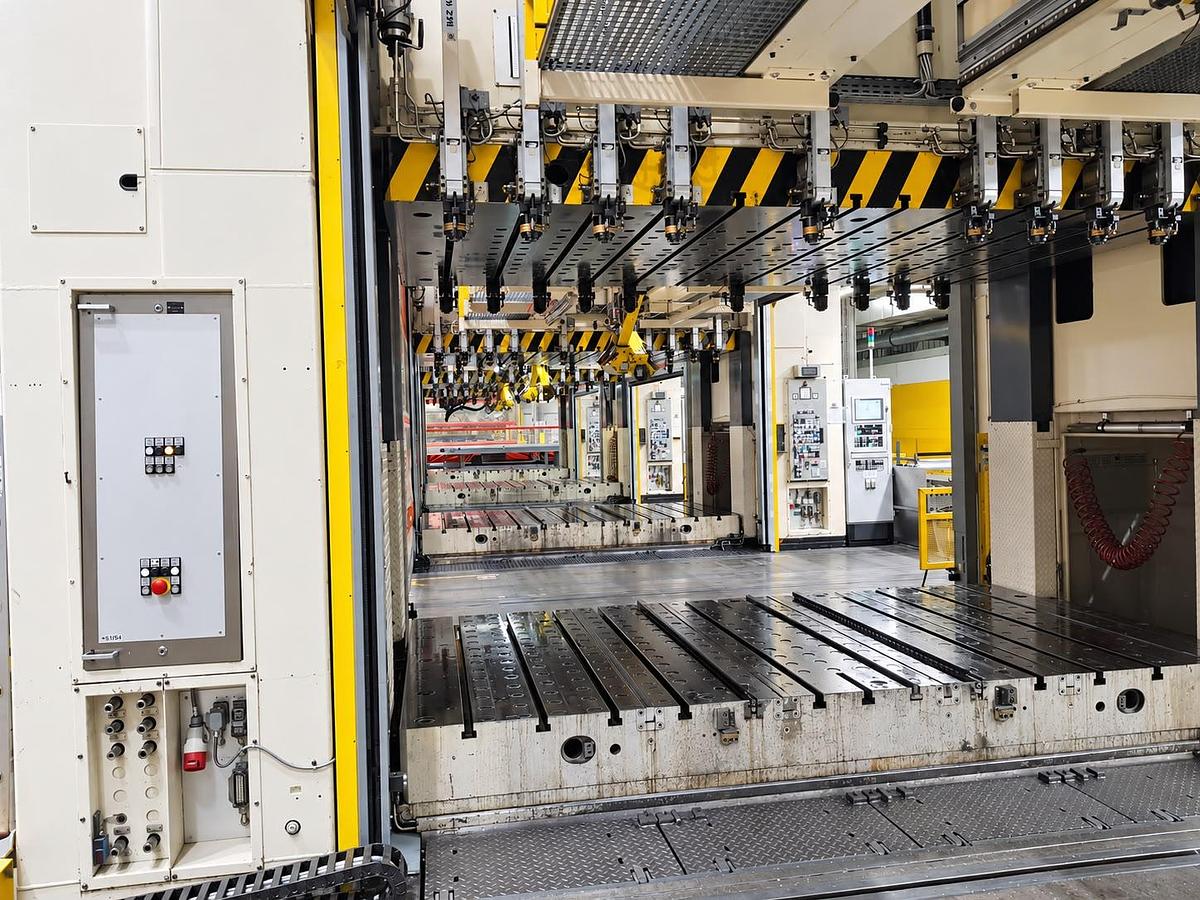

• Bolster dimensions: 4000 x 2200 mm

• Working speed: 10–22 spm

• Set-up speed: 3 spm

• Front clearance: 4400 mm

• Side clearance: 1900 mm
