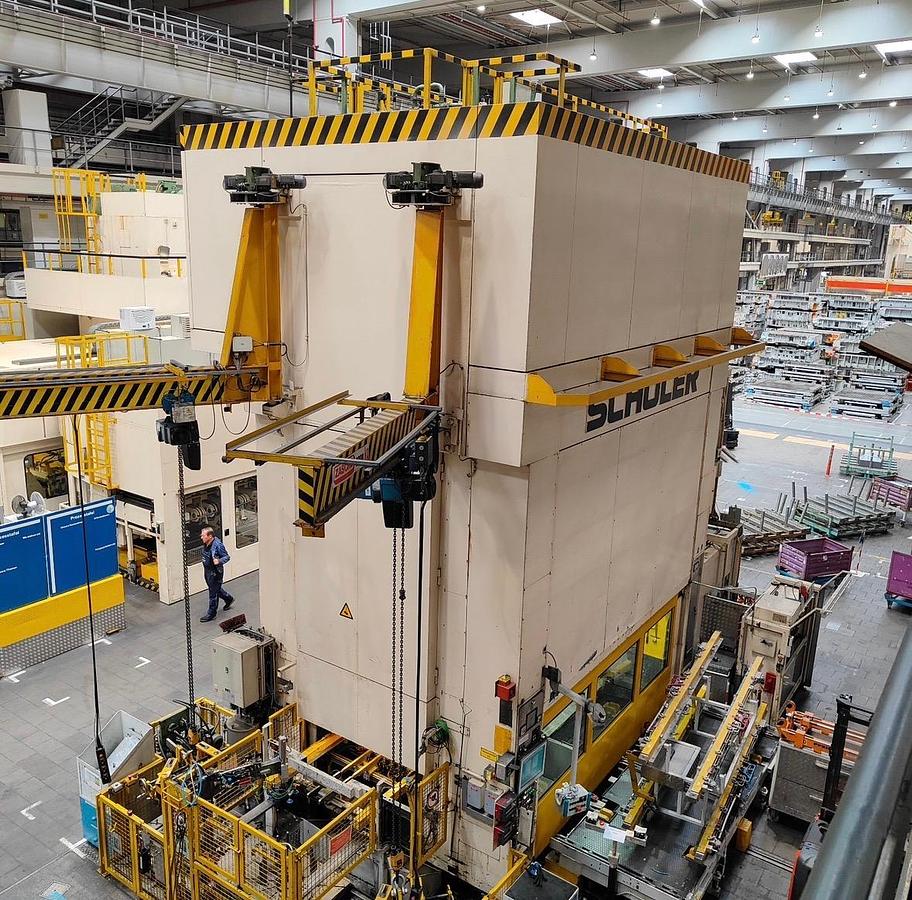

SCHULER 800 Ton Mechanical Press 3600 x 1500 mm – Ex BMW Dingolfing

SCHULER 800 ton H-frame mechanical press, ex BMW, suitable for large automotive stamping applications.

Heavy-duty 2-point press with 3600 x 1500 mm slide and table, 650 mm stroke, 1000 mm shut height and variable speed from 8 to 25 spm.

Main specifications:

• Rated capacity: 800 ton at 12.5 mm

• Number of connecting rods: 2

• Slide stroke: 650 mm

• Shut height: 1000 mm

• Slide adjustment: 100 mm

• Slide dimensions: 3600 x 1500 mm

• Table dimensions: 3600 x 1500 mm

• Front passage: 3800 mm

• Side window: 1550 mm

• Variable speed: 8–25 spm

• Main motor power: 75 kW

Strong and reliable mechanical press, originally used in the automotive industry.

Available from GENTA Presses.
