FAGOR 800 Ton - 4500 x 2700 mm - with cushion

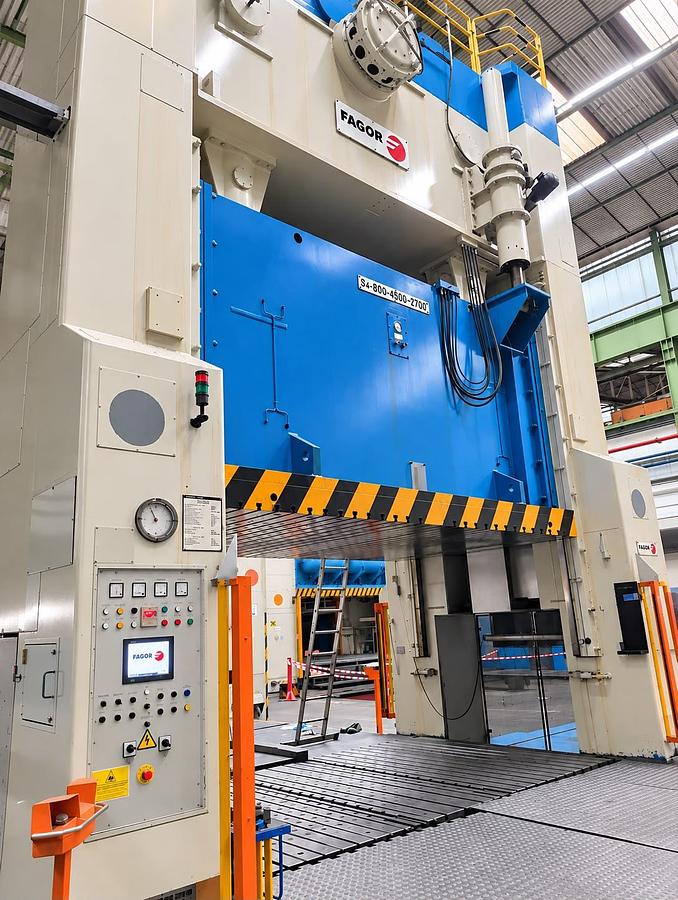

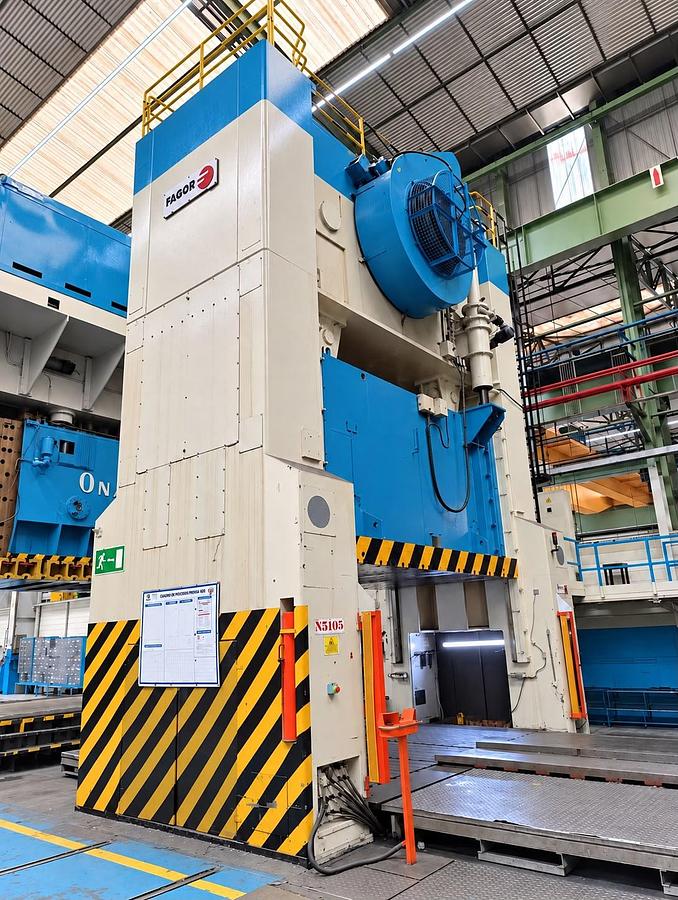

FAGOR S4-800-4500-2700 H-frame mechanical press, 800 ton capacity, 4-point design.

Heavy-duty press with large 4500 x 2700 mm working area, 950 mm slide stroke, 1450 mm shut height and 250 ton cushion, suitable for large automotive stamping applications.

Main specifications:

• Rated capacity: 800 ton

• Number of connecting rods: 4

• Slide stroke: 950 mm

• Slide adjustment: 750 mm

• Variable speed: 8–16 spm

• Shut height: 1450 mm

• Slide dimensions: 4500 x 2700 mm

• Table dimensions: 4500 x 2700 mm

• Cushion capacity: 250 ton

• Cushion stroke: 250 mm

• Front clearance between uprights: 4800 mm

• Side clearance between uprights: 1800 mm

Large-capacity mechanical press ideal for automotive and heavy sheet metal stamping.

Available from GENTA Presses.

The machine is currently located in Spain and will soon be transported to our warehouses in Turin.
