2013 MOSSINI

MODELLO - TYPE                                                            : PDM/4B/1000

MATRICOLA-SERIAL NUMBER                                        : 0900/13

ANNO/YEAR                                                                 : 2013

CINEMATISMO- KINEMATICS                                         : ECCENTRIC

CAPACITA’- RATED CAPACITY AT 8 mm                       : 1000 Tons

PUNTI di Spinta -NUMBER of connecting rod                : 4

CORSA SLITTA - SLIDE STROKE                                       : mm 350

REGOLAZIONE SLITTA- SLIDE ADJUSTMENT                     : mm 300

VELOCITA’ CONTINUA (variabile)

CONTINUOUS SPEED (variable)                                    : spm 20 - 55

LUCE VERTICALE dal carrello portastampi, CBRA

SHUT HEIGHT, from top of bolster, SDAU                       : mm 1450

DIMENSIONI SLITTA SLIDE DIMENSIONS (L-R x F-B)         : 4500 X 2500 mm

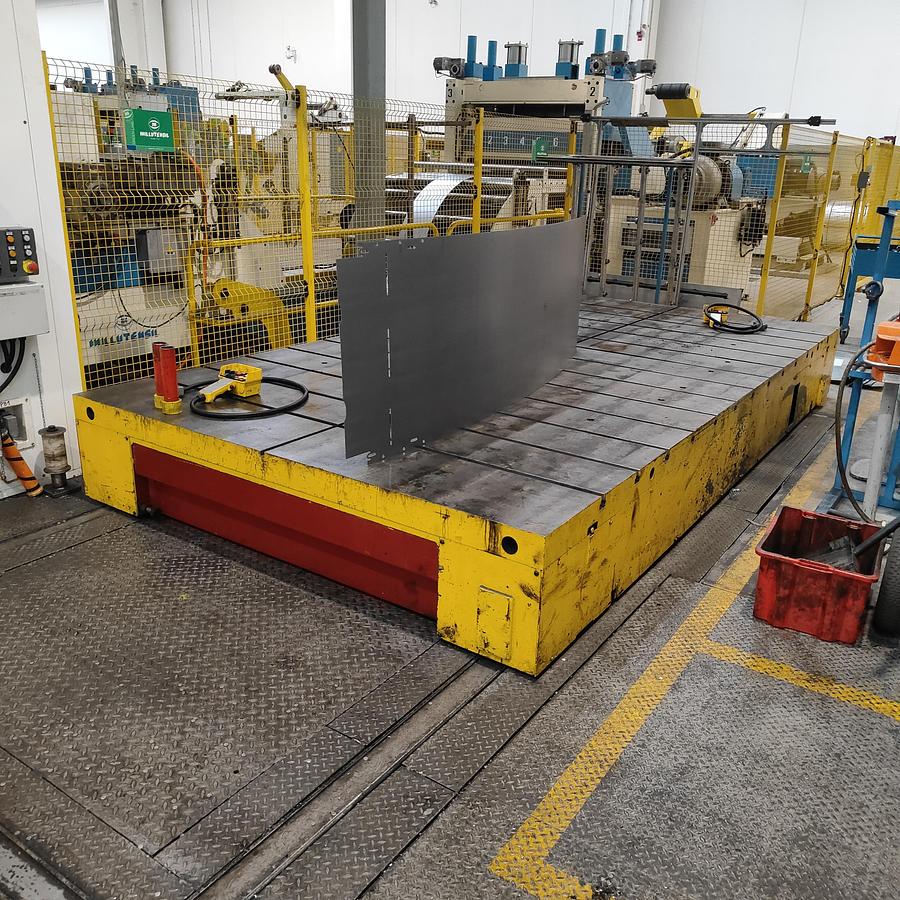

DIMENSIONI MOVIN BOLSTER FONTALE T TRACK

FRONT-T-TRACK MOVING BOLSTER DIMENSIONS          : 4500 X 2500 mm

DIMENSIONI PRINCIPALI-MAIN DIMENSIONS

APERTURA tra I MONTANTI frontale (dx-sx)

CLEARANCE BETWEEN UPRIGHTS (L-R)                          : 4700 mm

APERTURA tra I MONTANTI LATERALE (fronte-retro)

CLEARANCE BETWEEN UPRIGHTS (F-B)                          : mm 2100

ALTEZZA CARRO MOBILE-MOVING BOLSTER H.       : mm 600

PESO DELLA PRESSA-WEIGHT OF THE PRESS                    : Kg.280.000
