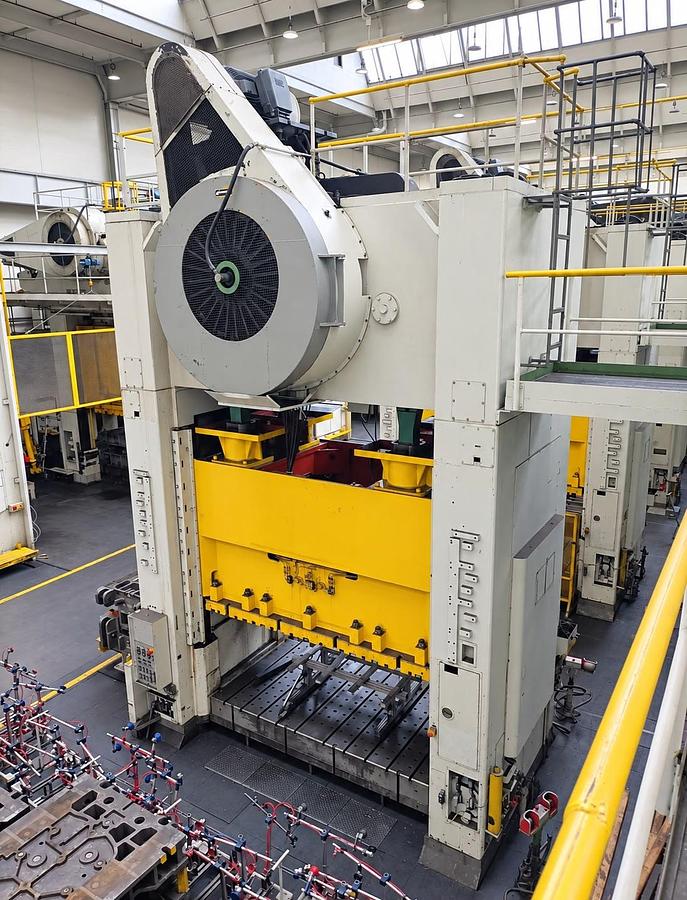

DANLY 800 Ton Mechanical Press – 3350 x 1830 mm - with CUSHION

DANLY 800 ton double-column mechanical press, model S4 800-132-72 . with CUSHION

Heavy-duty mechanical press with 3350 x 1830 mm ram and bed, 610 mm stroke, 510 mm adjustment and 1120 mm daylight. Suitable for large sheet metal stamping applications.

Main specifications:

• Capacity: 800 ton

• Model: S4 800-132-72

• Ram dimensions: 3350 x 1830 mm

• Bed dimensions: 3350 x 1830 mm

• Stroke: 610 mm

• Adjustment: 510 mm

• Daylight: 1120 mm

• Speed: 14–18 spm

• Bolster plate thickness: 275 mm

• Front passage: 3410 mm

• Approx. weight: 180,000 kg

Large-capacity mechanical press suitable for automotive and heavy sheet metal stamping.

Available from GENTA Presses.
