MECFOND 1500 Ton Mechanical Press Overhauled – 2 Moving Bolsters 4600 x 2700 mm

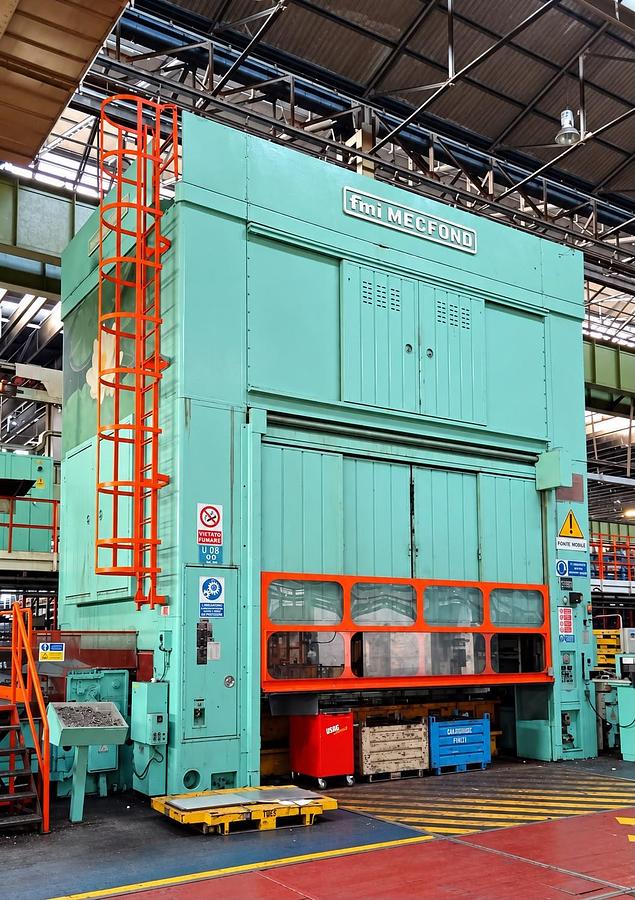

MECFOND 1500 ton H-frame mechanical press, model S4-1500, year 1984.

Heavy-duty 4-point eccentric press equipped with two large 4600 x 2700 mm moving bolsters with front T-track exit.

The machine offers 500 mm slide stroke, 1300 mm shut height, 200 mm slide adjustment and variable speed from 12 to 30 spm, making it suitable for large automotive stamping and heavy sheet metal forming applications.

Main specifications:

• Manufacturer: MECFOND

• Model: S4-1500

• Year: 1984

• Rated capacity: 1500 ton

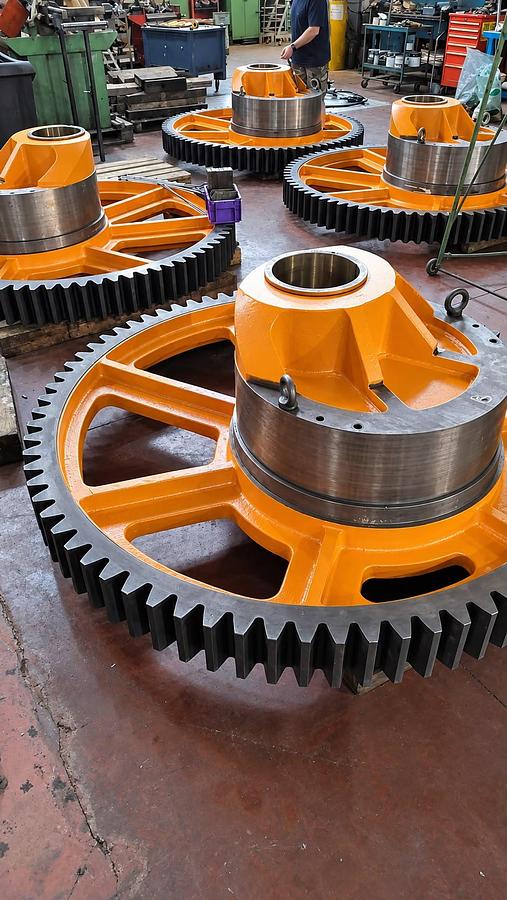

• Drive system: Eccentric

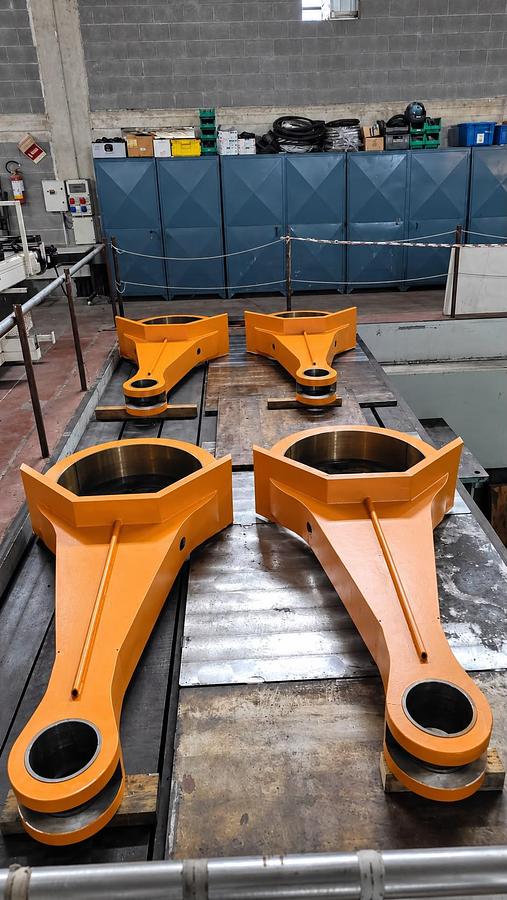

• Number of connecting rods: 4

• Capacity rating distance from BDC: 12.7 mm

• Slide stroke: 500 mm

• Shut height: 1300 mm

• Slide adjustment: 200 mm

• Moving bolster dimensions: 4600 x 2700 mm

• Number of moving bolsters: 2

• Moving bolster exit: Front / T-track

• Moving bolster height: 400 mm

• Variable speed: 12–30 spm

• Main motor power: 400 HP

• Front clearance between uprights: 5000 mm

• Side clearance between uprights: 3200 mm

• Maximum height from floor: 8200 mm

• Approx. press weight: 450 ton

Large-capacity mechanical press suitable for automotive stamping, large body panels and heavy sheet metal applications.

Available from GENTA Presses.
