SCHULER 600 Ton Mechanical Press 4500 x 2250 mm + MILLUTENSIL Coil Line

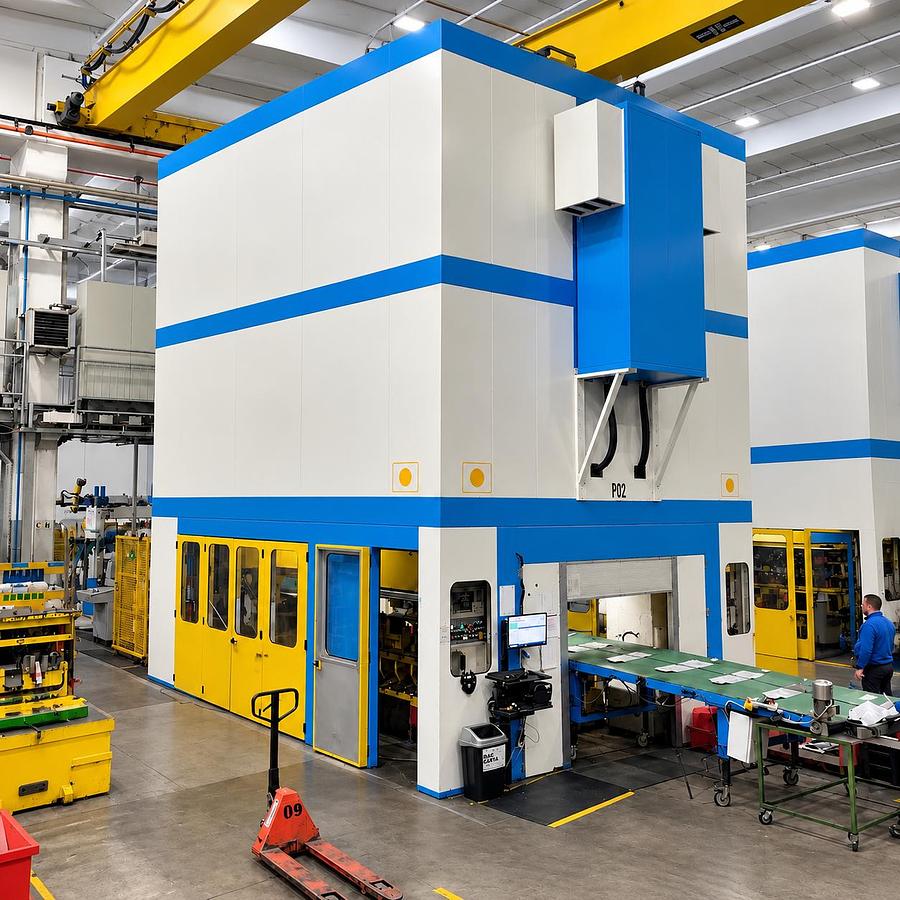

SCHULER 600 ton H-frame mechanical press, model ES4-600-4.5-0.4, renewed in 2013 and complete with MILLUTENSIL coil feeding line.

Heavy-duty 4-point eccentric press equipped with a large 4500 x 2250 mm front moving bolster, 406 mm stroke, 1470 mm shut height and variable speed from 10 to 40 spm.

The complete system includes a MILLUTENSIL decoiling, straightening and feeding line, year 2013, suitable for coils up to 20,000 kg.

Main press specifications:

• Manufacturer: SCHULER

• Model: ES4-600-4.5-0.4

• Renewed: 2013

• Capacity: 600 ton at 25 mm

• Number of connecting rods: 4

• Slide stroke: 406 mm

• Slide adjustment: 254 mm

• Shut height: 1470 mm

• Slide dimensions: 4500 x 2250 mm

• Front moving bolster: 4500 x 2250 mm

• Moving bolster height: 510 mm

• Variable speed: 10–40 spm

• Front clearance between uprights: 4600 mm

• Side clearance between uprights: 2150 mm

• Approx. press weight: 170,000 kg

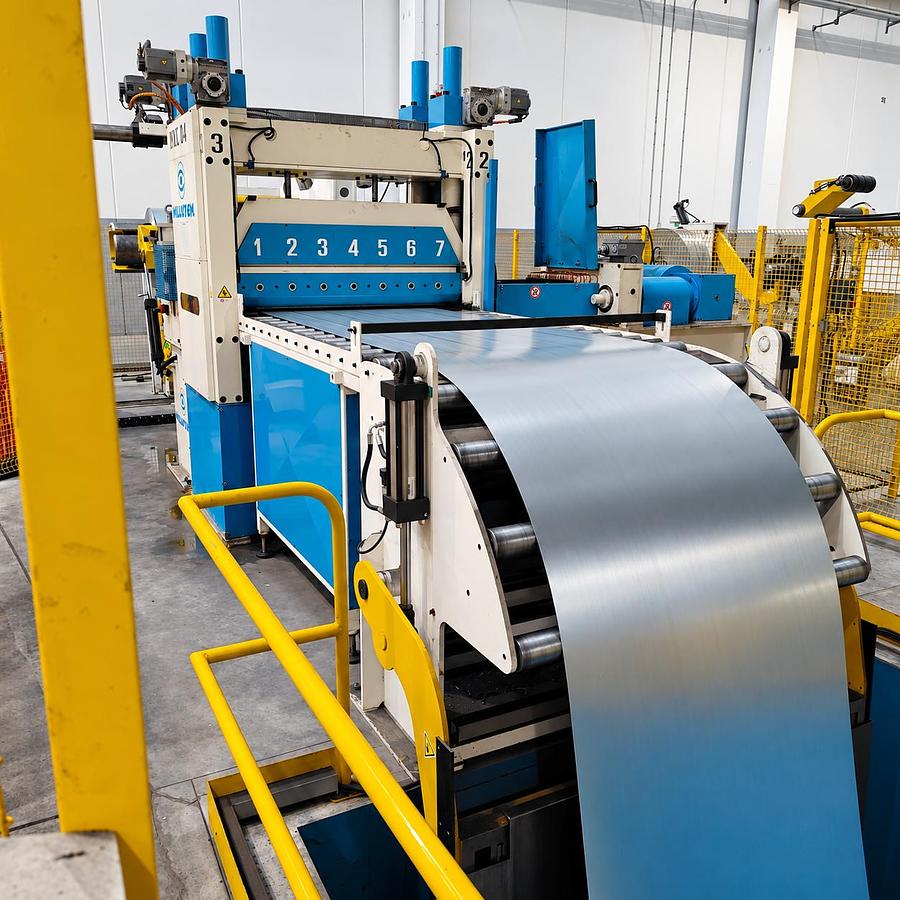

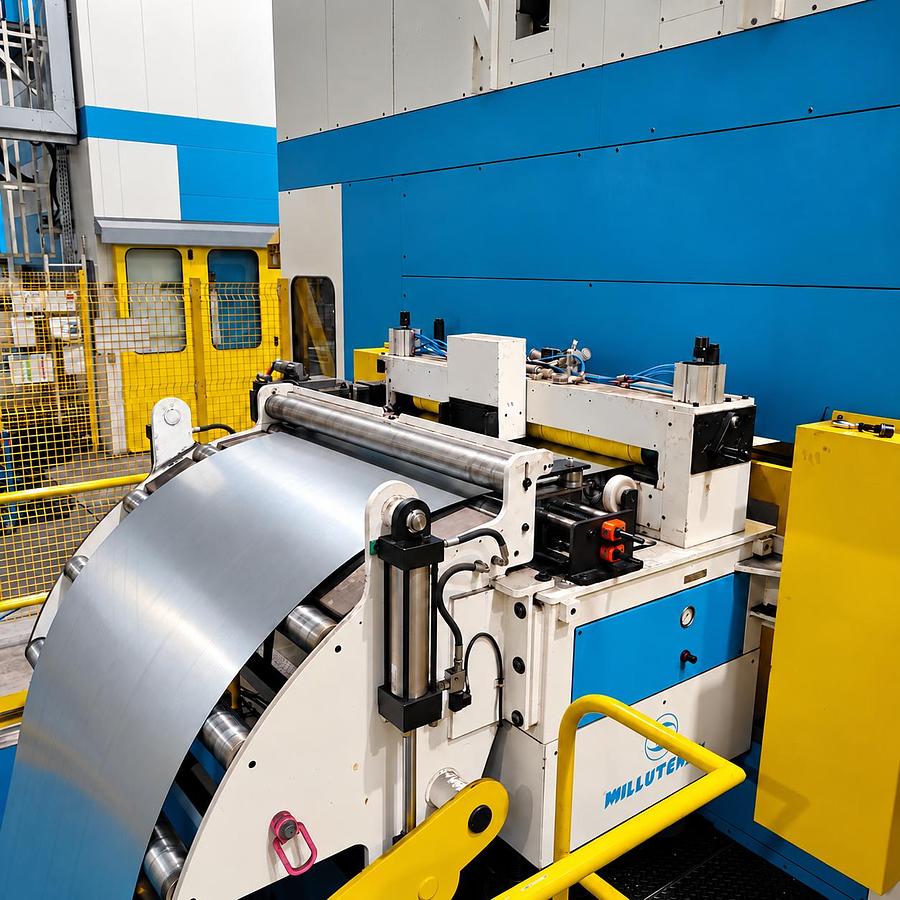

MILLUTENSIL coil line:

• Year: 2013

• Maximum sheet width: 1500 mm

• Maximum sheet thickness: 2.5 mm

• Maximum coil weight: 20,000 kg

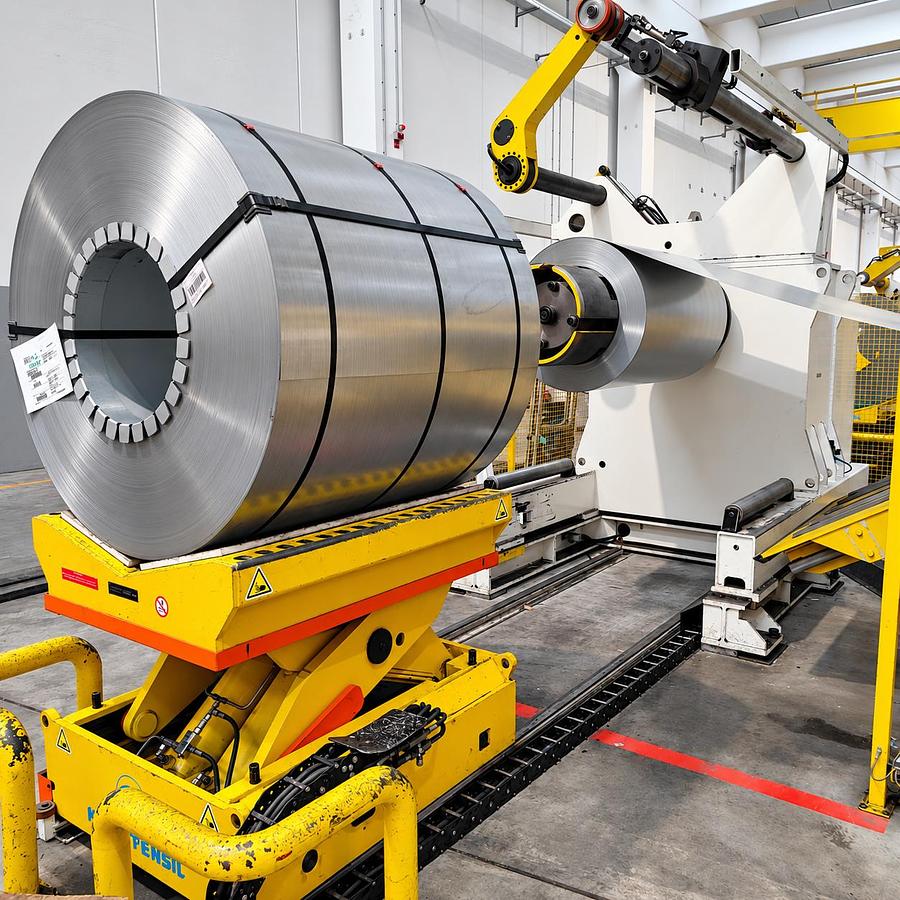

• Decoiling, straightening and feeding system

Complete stamping solution suitable for automotive, progressive stamping and high-volume sheet metal production.

Available from GENTA Presses.
