ROVETTA 400 Ton Mechanical Press MB – 2740 x 1520 mm - with cushion

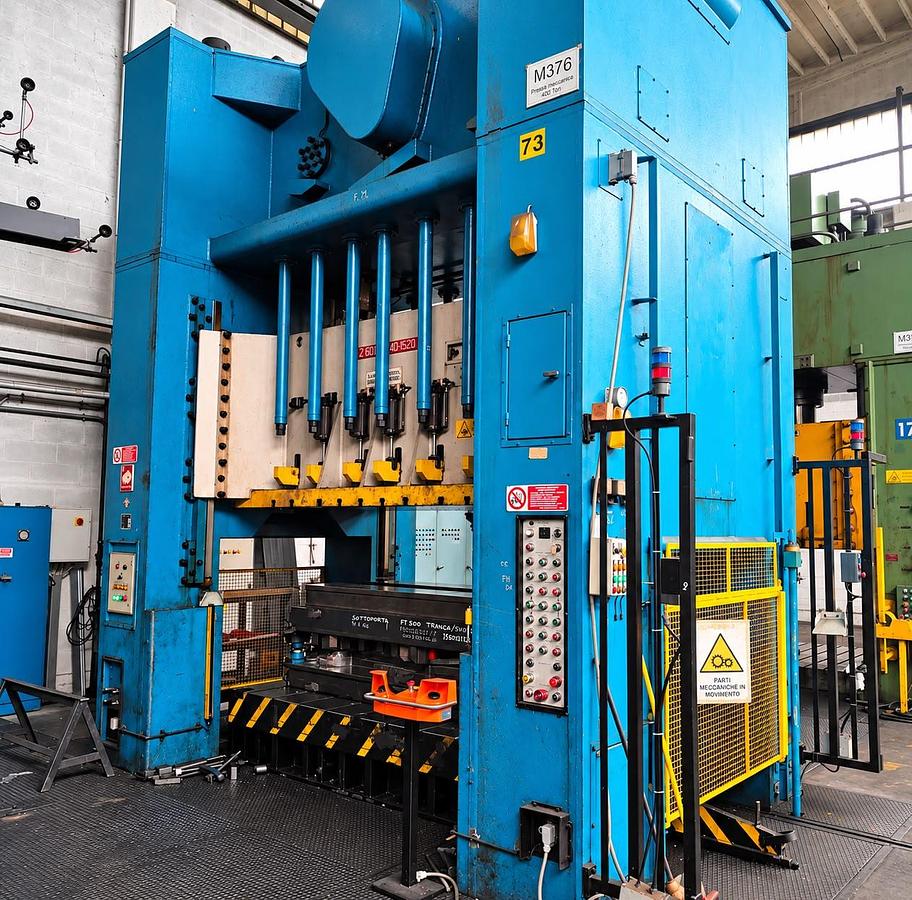

ROVETTA 400 ton H-frame mechanical press, model S2-400-2740x1520.

Heavy-duty 2-point eccentric press equipped with a 2740 x 1520 mm side moving bolster, 508 mm slide stroke, 1150 mm shut height and 305 mm slide adjustment.

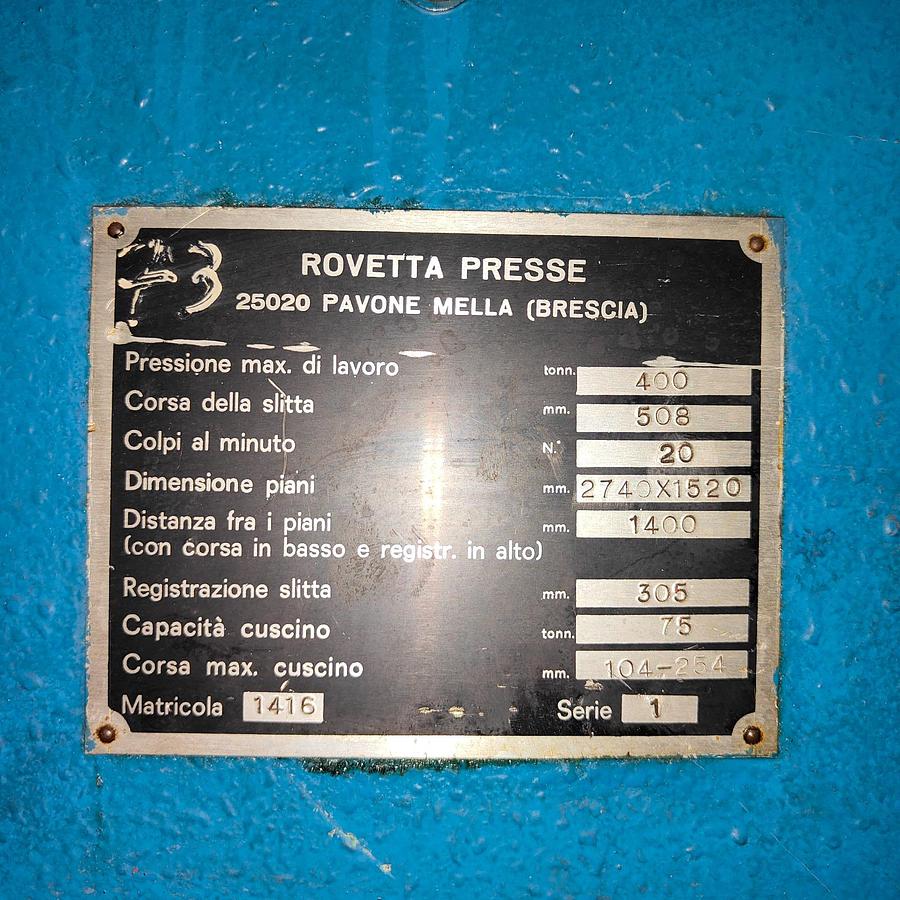

Main specifications:

• Manufacturer: ROVETTA

• Model: S2-400-2740x1520

• Serial number: 1416-1

• Rated capacity: 400 ton

• Drive system: Eccentric

• Number of connecting rods: 2

• Slide stroke: 508 mm

• Shut height: 1150 mm

• Slide adjustment: 305 mm

• Slide dimensions: 2740 x 1520 mm

• Moving bolster dimensions: 2740 x 1520 mm

• Number of moving bolsters: 1

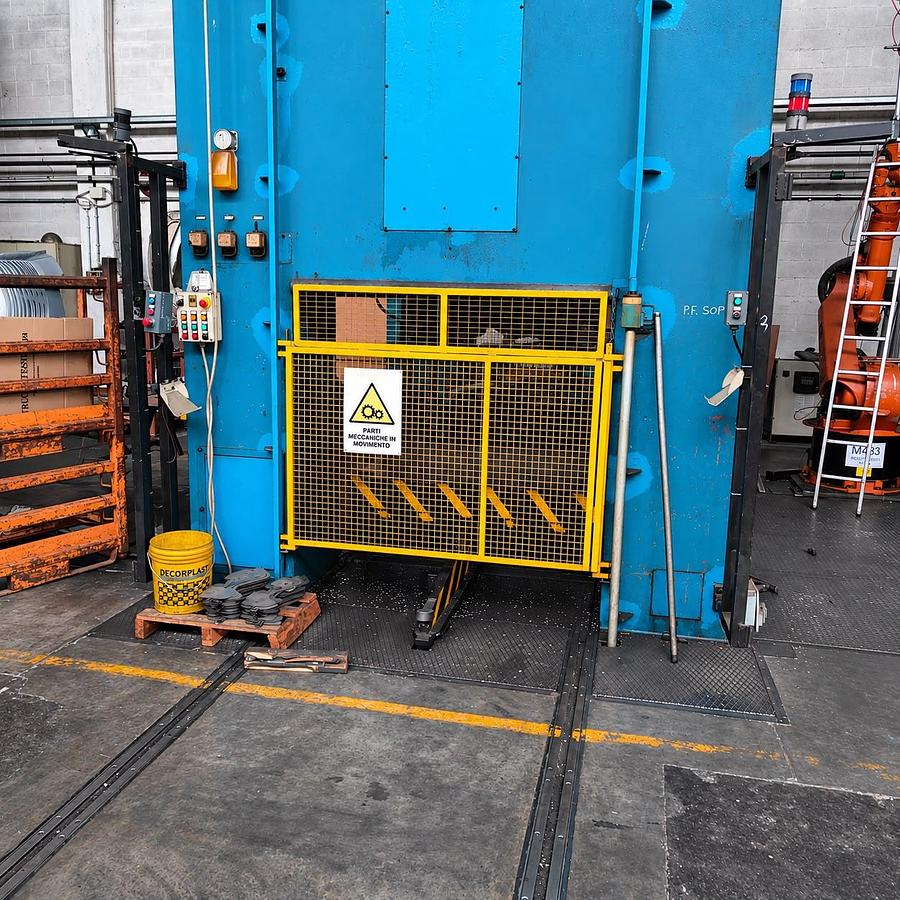

• Moving bolster exit: Side

• Moving bolster height: 480 mm

• Speed: 20 spm

• Cushion capacity: 75 ton

• Cushion stroke: 104–254 mm

• Front clearance between uprights: 2750 mm

• Side clearance between uprights: 1600 mm

• Approx. press weight: 90 ton

• Maximum height from floor: 6480 mm
