ONA PRES 1500 Ton Hydraulic Press – 5000 x 2700 mm

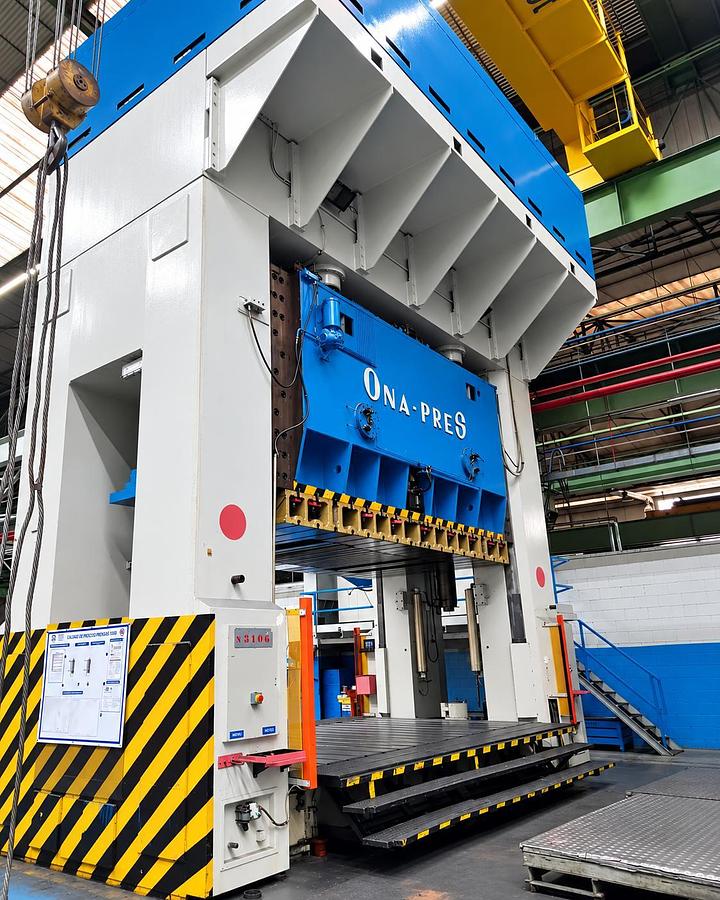

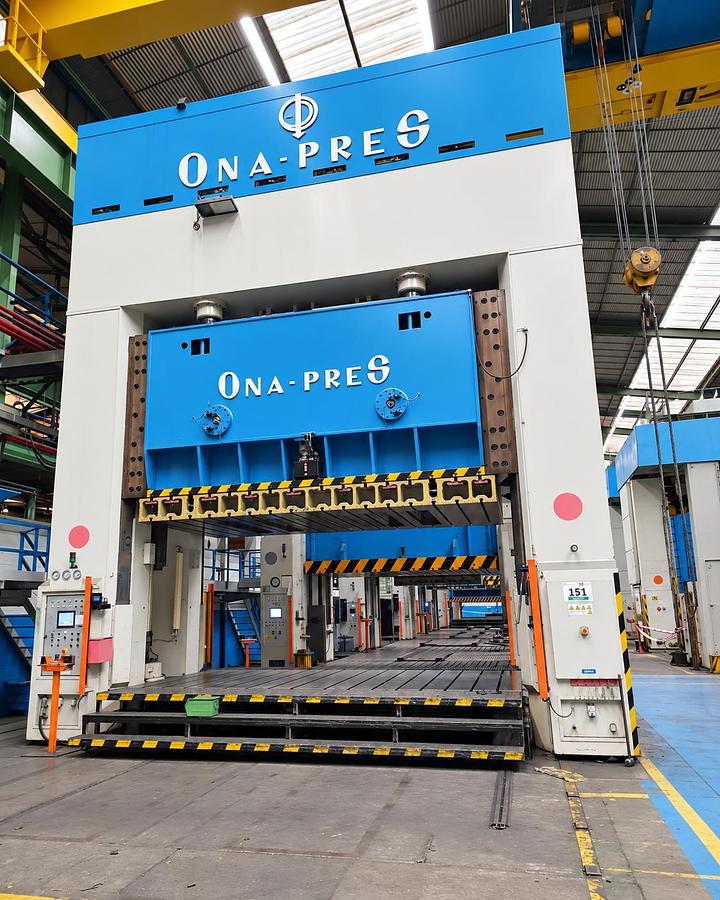

ONA PRES 1500 ton hydraulic press, model EBT-150-5-N.

Heavy-duty hydraulic press equipped with a large 5000 x 2700 mm moving bolster, 1400 mm slide stroke, 2600 mm maximum shut height and 500 ton cushion capacity.

Main specifications:

• Manufacturer: ONA PRES

• Model: EBT-150-5-N

• Ram capacity: 1500 ton

• Slide stroke: 1400 mm

• Maximum shut height: 2600 mm

• Moving bolster size: 5000 x 2700 mm

• Cushion capacity: 500 ton

• Cushion stroke: 400 mm

• Electrical power: 400 kW

• Approx. press weight: 365,000 kg

Large-capacity hydraulic press suitable for automotive stamping, deep drawing and heavy sheet metal forming applications.

Available from GENTA Presses.
